ASCENDO · PERFORMANCE · POINT SOURCE

THE10 Passive On-wall

High-output 10-inch coaxial platform for LCR, wide and surround roles.

VERIFIED OFFICIAL DATA

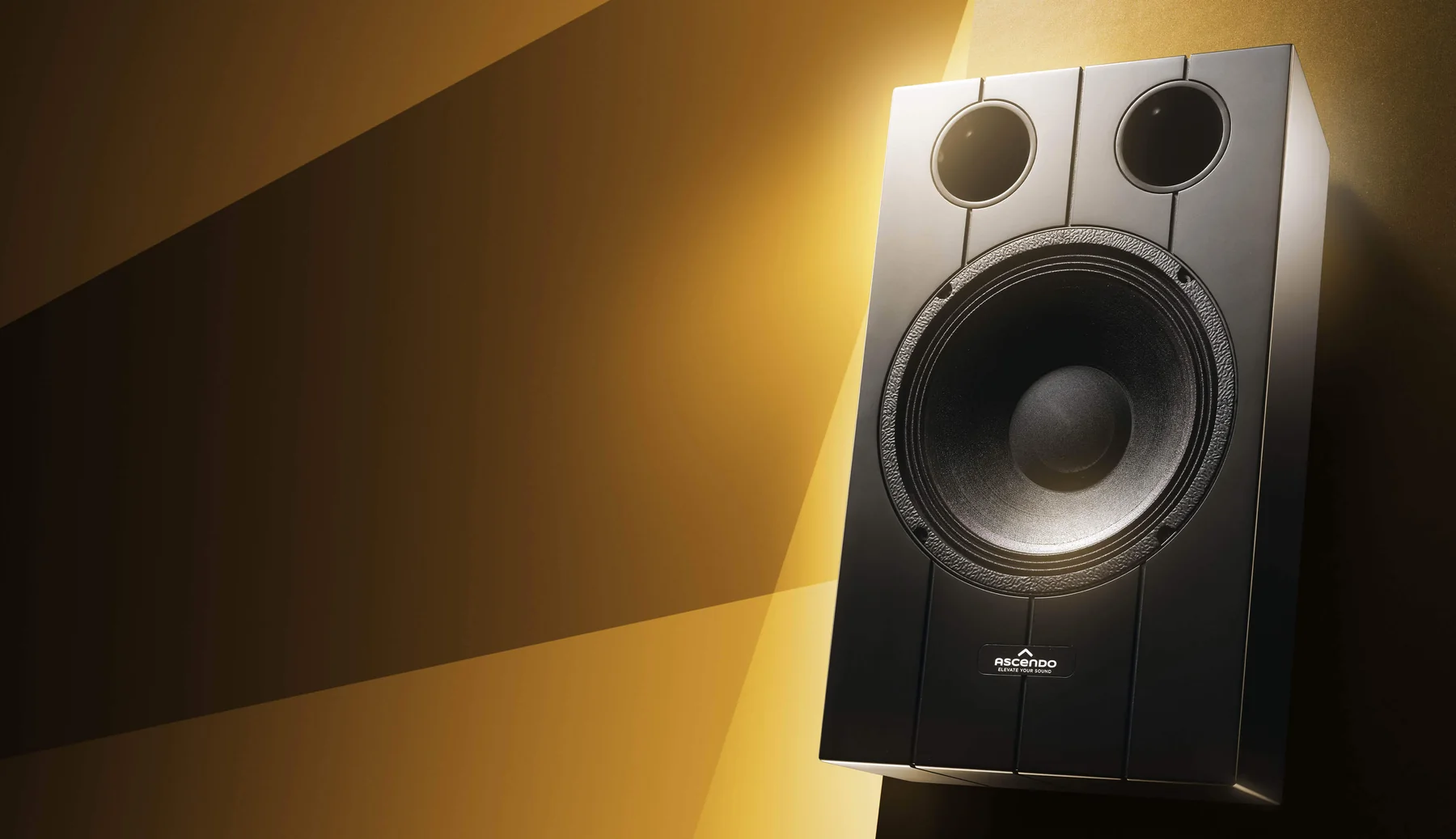

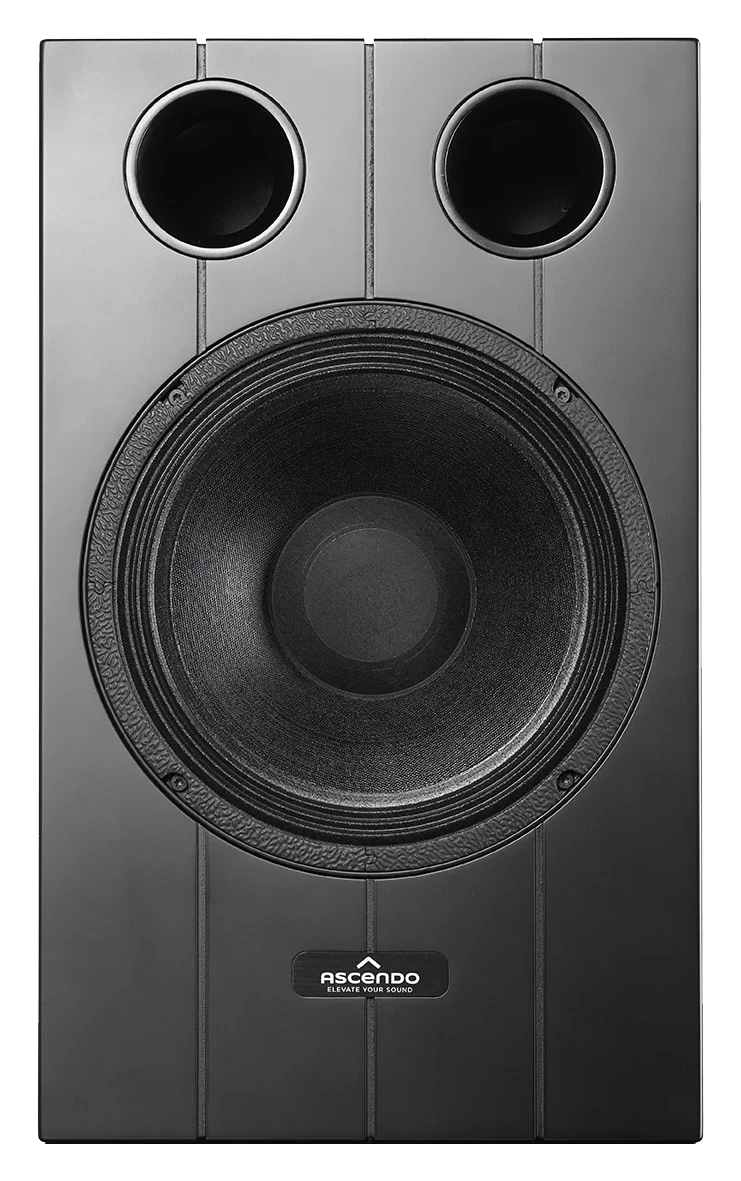

ASCENDO THE10 Passive On-wall front product view
Speaker type10-inch time-coherent point-source coaxial
Maximum SPL120 dB continuous / 130 dB peak (2π)
Frequency range100 Hz–20 kHz (-3 dB, without DSP)
Sensitivity97 dB / 1 W / 1 m (2π)
Enquire about this productView in Home Cinema Store
WHY IT EXISTS
Choose the exact format around the room, coverage and installation method.

High-output 10-inch coaxial platform for LCR, wide and surround roles.

This guide keeps the product's published figures tied to its exact variant so that on-wall, wedge, passive and externally active versions are not treated as interchangeable.

SYSTEM ROLE

Resolve the room before the channel count.

01

Coverage

Aim and listening geometry determine whether this enclosure format belongs in the room.

02

Headroom

Listening distance, target level and crossover strategy determine the required output margin.

03

Integration

Mounting, service access, amplification and acoustic treatment must be planned together.

OFFICIAL PUBLISHED SPECIFICATION

Current manufacturer data.

Speaker type10-inch time-coherent point-source coaxial
Maximum SPL120 dB continuous / 130 dB peak (2π)
Frequency range100 Hz–20 kHz (-3 dB, without DSP)
Sensitivity97 dB / 1 W / 1 m (2π)
Impedance8 Ω
Power handling500 W
Dimensions300 × 500 × 145 mm, without grille
Weight12.0 kg

Verified against the official manufacturer product page on 13 September 2026. Confirm current revision and installation documentation before final project specification.

ASSOCIATED ASCENDO PRODUCTS

Continue the system around the room.

ASCENDOTHE10 Passive WedgeHigh-output angled 10-inch point source for wide, surround and height positions.ASCENDOTHE12 Be Pro Passive On-wallBeryllium-dome 12-inch PRO point source for flagship passive screen channels.ASCENDOTHE12 Be Pro Passive WedgeAngled beryllium-dome THE12 PRO for flagship wide, surround and immersive roles.
MANUFACTURER REFERENCE

Primary product source.

Official data and product imagery are linked to the exact model variant shown on this page.

Official manufacturer information reviewed for this page.
PROJECT-SPECIFIC ADVICE

Specify THE10 Passive On-wall in the context of the room.

Send the room dimensions, seating plan, screen width, target layout and intended listening level.
