HOME CINEMA
SPEAKERS
ASCENDO · PERFORMANCE · POINT SOURCE

THE5 Passive On-wall

Compact on-wall point-source cinema loudspeaker for surround, wide and smaller-room screen-channel duties.

VERIFIED OFFICIAL DATA

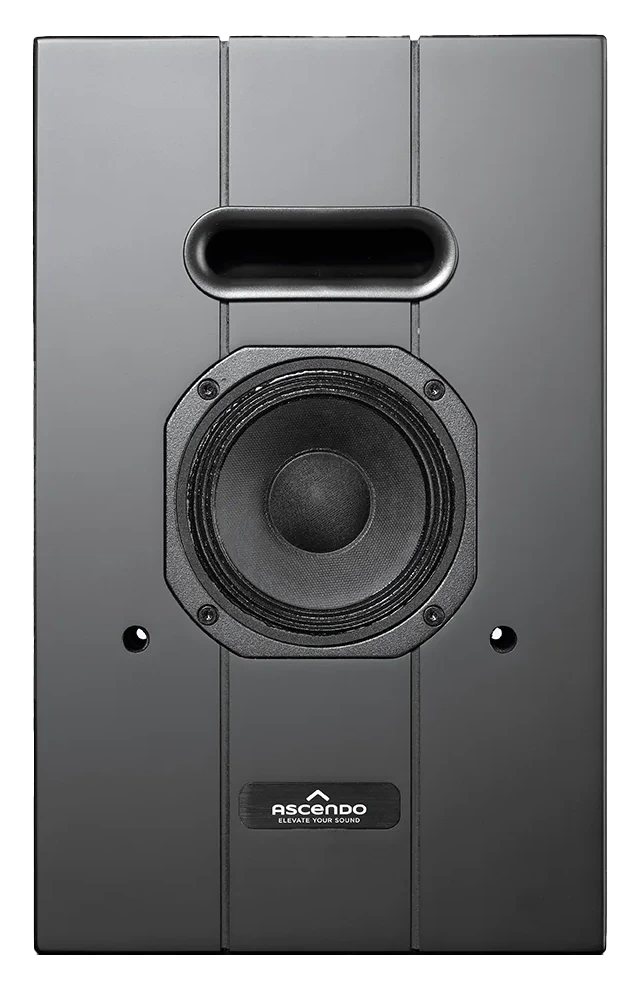

ASCENDO THE5 Passive On-wall front product view
Speaker type5¼-inch time-coherent point-source coaxial
Maximum SPL108 dB continuous / 120 dB peak (2π)
Frequency range100 Hz–20 kHz (-3 dB, without DSP)
Sensitivity89 dB / 1 W / 1 m (2π)
Enquire about this product
WHY IT EXISTS
Choose the exact format around the room, coverage and installation method.

Compact on-wall point-source cinema loudspeaker for surround, wide and smaller-room screen-channel duties.

This guide keeps the product's published figures tied to its exact variant so that on-wall, wedge, passive and externally active versions are not treated as interchangeable.

SYSTEM ROLE

Resolve the room before the channel count.

01

Coverage

Aim and listening geometry determine whether this enclosure format belongs in the room.

02

Headroom

Listening distance, target level and crossover strategy determine the required output margin.

03

Integration

Mounting, service access, amplification and acoustic treatment must be planned together.

OFFICIAL PUBLISHED SPECIFICATION

Current manufacturer data.

Speaker type5¼-inch time-coherent point-source coaxial
Maximum SPL108 dB continuous / 120 dB peak (2π)
Frequency range100 Hz–20 kHz (-3 dB, without DSP)
Sensitivity89 dB / 1 W / 1 m (2π)
Impedance8 Ω
Power handling100 W
Dimensions250 × 400 × 75 mm, without grille
Weight4.0 kg

Verified against the official manufacturer product page on 13 September 2026. Confirm current revision and installation documentation before final project specification.

ASSOCIATED ASCENDO PRODUCTS

Continue the system around the room.

ASCENDOTHE15 Pro Passive On-wallLarge-format 15-inch PRO point source for cinema-scale output and long listening distances.ASCENDOTHE6 Passive NarrowA horizontally compact THE6 format for constrained architectural positions.ASCENDOTHE6 Passive On-wallShallow 6.5-inch on-wall point source for coherent base-layer and surround coverage.
MANUFACTURER REFERENCE

Primary product source.

Official data and product imagery are linked to the exact model variant shown on this page.

Official manufacturer information reviewed for this page.
PROJECT-SPECIFIC ADVICE

Specify THE5 Passive On-wall in the context of the room.

Send the room dimensions, seating plan, screen width, target layout and intended listening level.

Enquire about this product
