Coverage
Aim and listening geometry determine whether this enclosure format belongs in the room.
ASCENDO · PRO · CEILING
THE6 Pro Passive Ceiling
Ultra-shallow PRO ceiling point source for discreet immersive-channel integration.
VERIFIED OFFICIAL DATA
Speaker type6½-inch time-coherent point-source coaxial, neodymium motor
Maximum SPL103 dB continuous / 115 dB peak (2π)
Frequency range85 Hz–20 kHz (-3 dB, without DSP)
Sensitivity91 dB / 1 W / 1 m (2π)

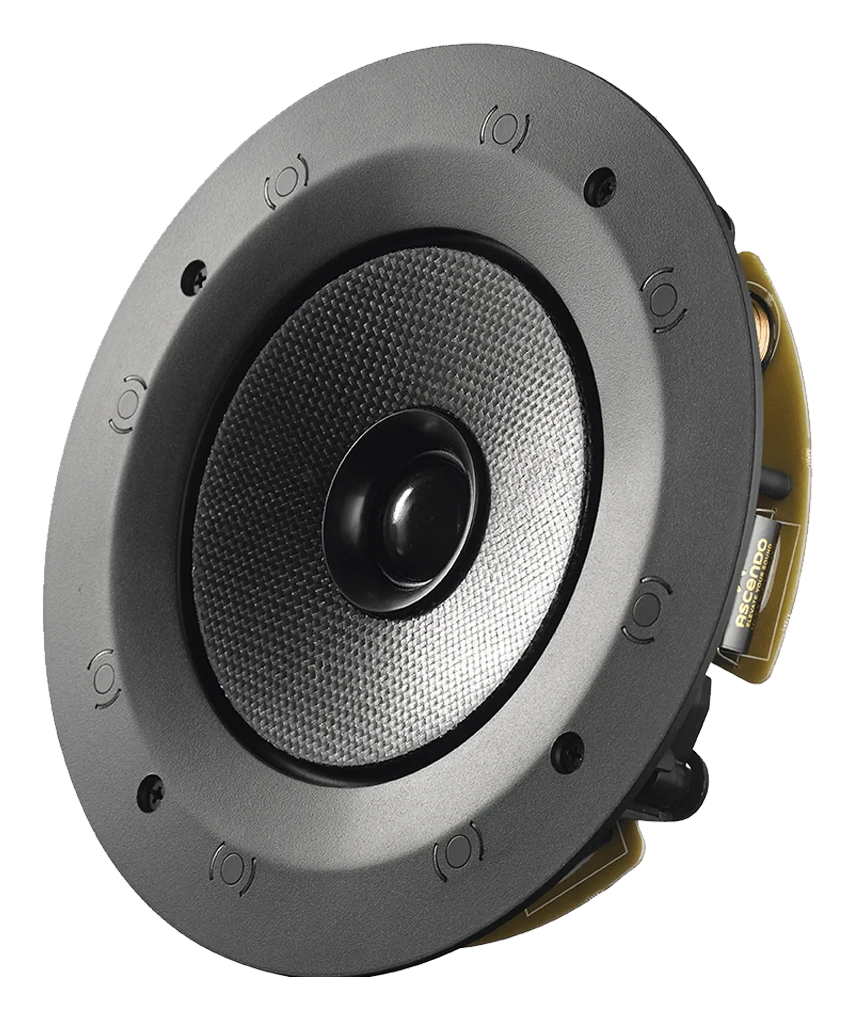

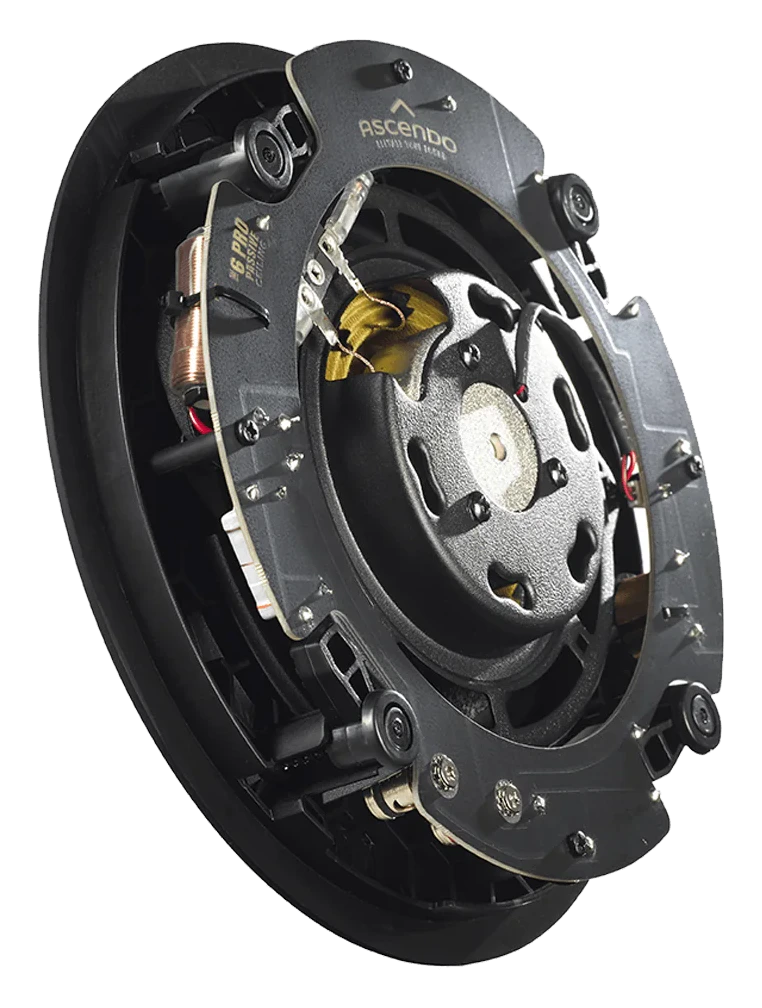

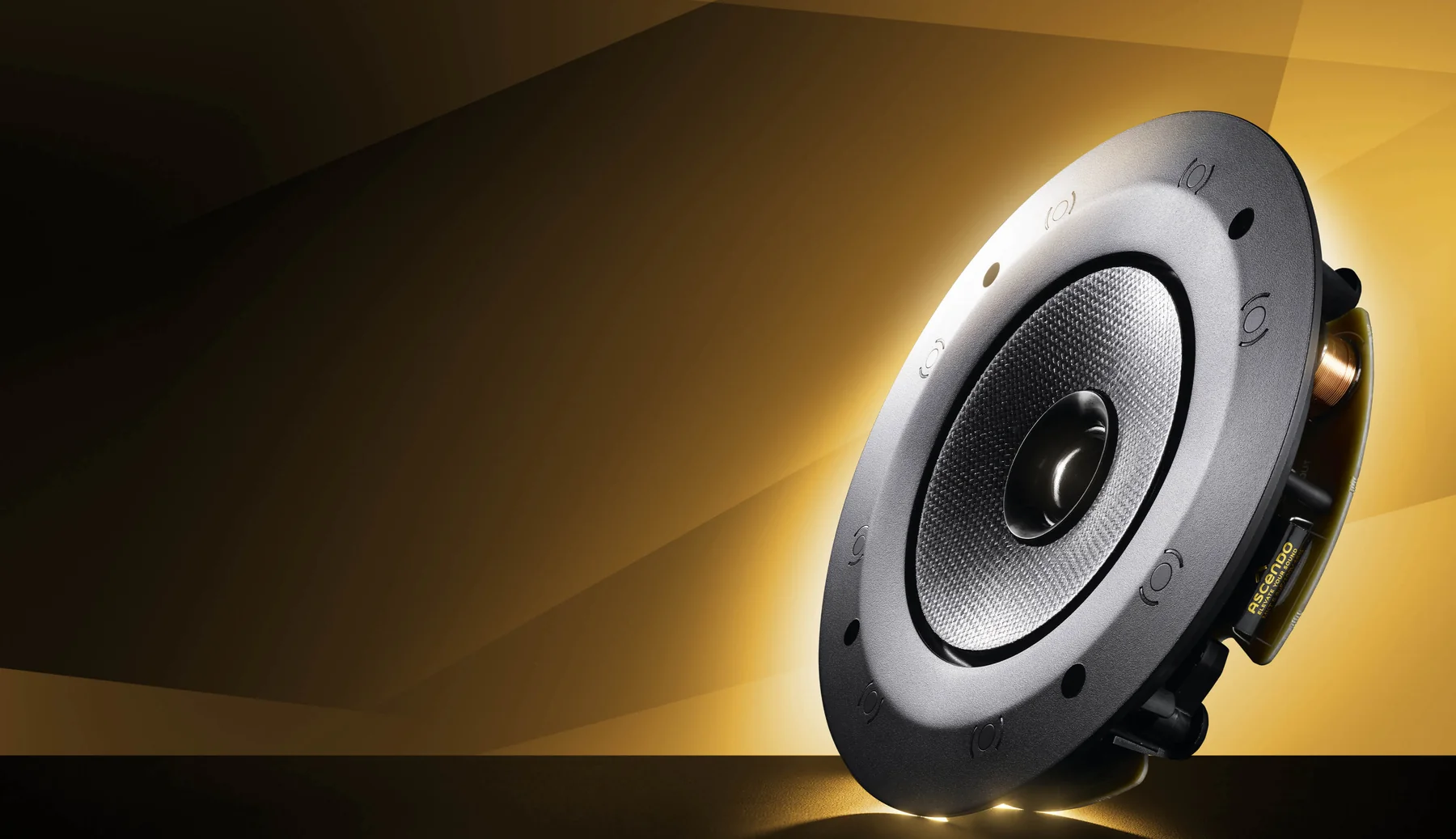

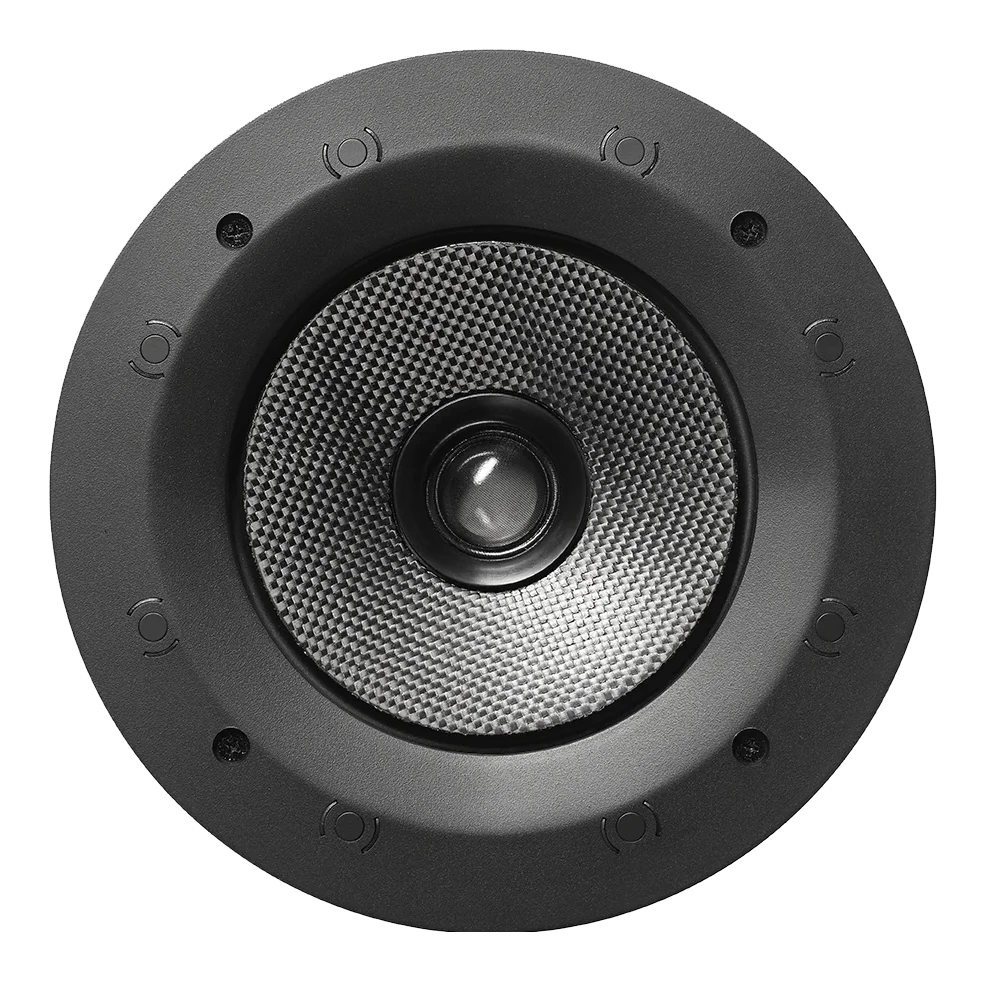

PRODUCT GALLERY
See the product from more than one perspective.
Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
Choose the exact format around the room, coverage and installation method.
Ultra-shallow PRO ceiling point source for discreet immersive-channel integration.
This guide keeps the product's published figures tied to its exact variant so that on-wall, wedge, passive and externally active versions are not treated as interchangeable.
SYSTEM ROLE
Resolve the room before the channel count.
Headroom
Listening distance, target level and crossover strategy determine the required output margin.
Integration
Mounting, service access, amplification and acoustic treatment must be planned together.
OFFICIAL PUBLISHED SPECIFICATION
Current manufacturer data.
Speaker type6½-inch time-coherent point-source coaxial, neodymium motor
Maximum SPL103 dB continuous / 115 dB peak (2π)
Frequency range85 Hz–20 kHz (-3 dB, without DSP)
Sensitivity91 dB / 1 W / 1 m (2π)
Impedance8 Ω
Power handling200 W
Dimensions225 mm diameter × 42.9 mm deep
Weight1.2 kg
Verified against the official manufacturer product page on 13 September 2026. Confirm current revision and installation documentation before final project specification.
MANUFACTURER REFERENCE
Primary product source.
Official data and product imagery are linked to the exact model variant shown on this page.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify THE6 Pro Passive Ceiling in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
