Hidden LCR
Can disappear behind an acoustically transparent screen or fabric wall.
M&K SOUND · 300 SERIES · IN-WALL
IW300
An in-wall 300 Series option for rooms that want M&K reference voicing with no visible cabinet.
REFERENCE ARCHITECTURAL
RoleLCR / surround
ArchitectureS300 drivers + crossover
Format120 mm in-wall
SystemDedicated cinema
Sensitivity93 dB

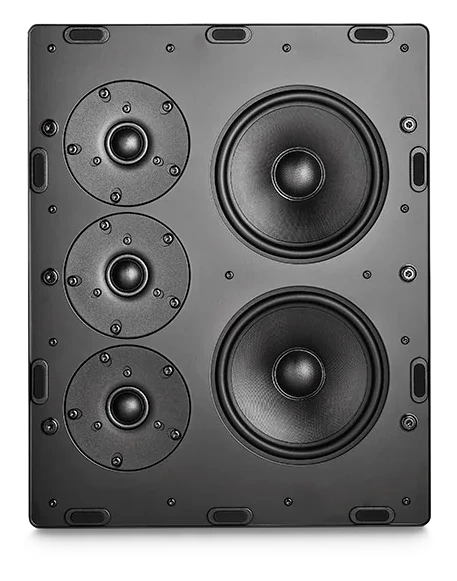

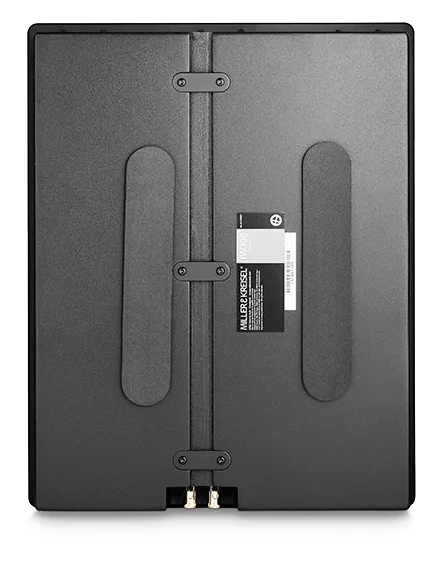

PRODUCT GALLERY
See the product from more than one perspective.
Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
Hide the cabinet, not the system intent.
IW300 brings the 300 Series into a fully architectural format, useful when the room finish demands invisible loudspeakers.
As with any in-wall reference speaker, framing, cavity construction and service access need to be treated as part of the acoustic design.
SYSTEM ROLE
Where it fits in a cinema.
Architectural surrounds
Useful for side and rear positions where projecting cabinets are undesirable.
System consistency
Keeps the main channels inside the same M&K family.
ROOM DESIGN
Choose the room conditions before choosing the quantity.
Wall constructionDo not assume every stud bay provides the same acoustic environment.
IsolationControl vibration transmission into adjacent rooms where possible.
PlacementThe wall fixes the speaker position permanently, so geometry must be right before plastering.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response80 Hz–22 kHz ±3 dB
Sensitivity93 dB / 2.83 V / 1 m
Nominal impedance4 ohm
Recommended amplifier power25–500 W
Mounting depth120 mm
Manufacturer specifications should be confirmed against the current data sheet before final project specification.
RELATED M&K Sound PRODUCTS
300 SeriesS300A compact reference monitor with 93 dB sensitivity, triple-tweeter array and dual woofers, designed for transparent cinema playback.300 SeriesMP300A shallow on-wall member of the 300 Series for reference LCR or surround positions where cabinet depth matters.150 SeriesS150The iconic compact M&K monitor updated with technologies derived from the S300 and designed for transparent cinema playback.
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the manufacturer installation manual or current data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify IW300 in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
