Large LCR
Designed for rooms roughly 8–16 m deep.
PROCELLA AUDIO · LARGE LCR · THX APPROVED
P815
A bi-amplified compression-driver screen-channel system for large private cinemas and professional screening environments.
SPECIALIST REFERENCE
RoleLCR
ArchitectureCompression driver + 8-inch mid + 15-inch LF
Coverage80° H × 50° V
Application8–16 m room depth

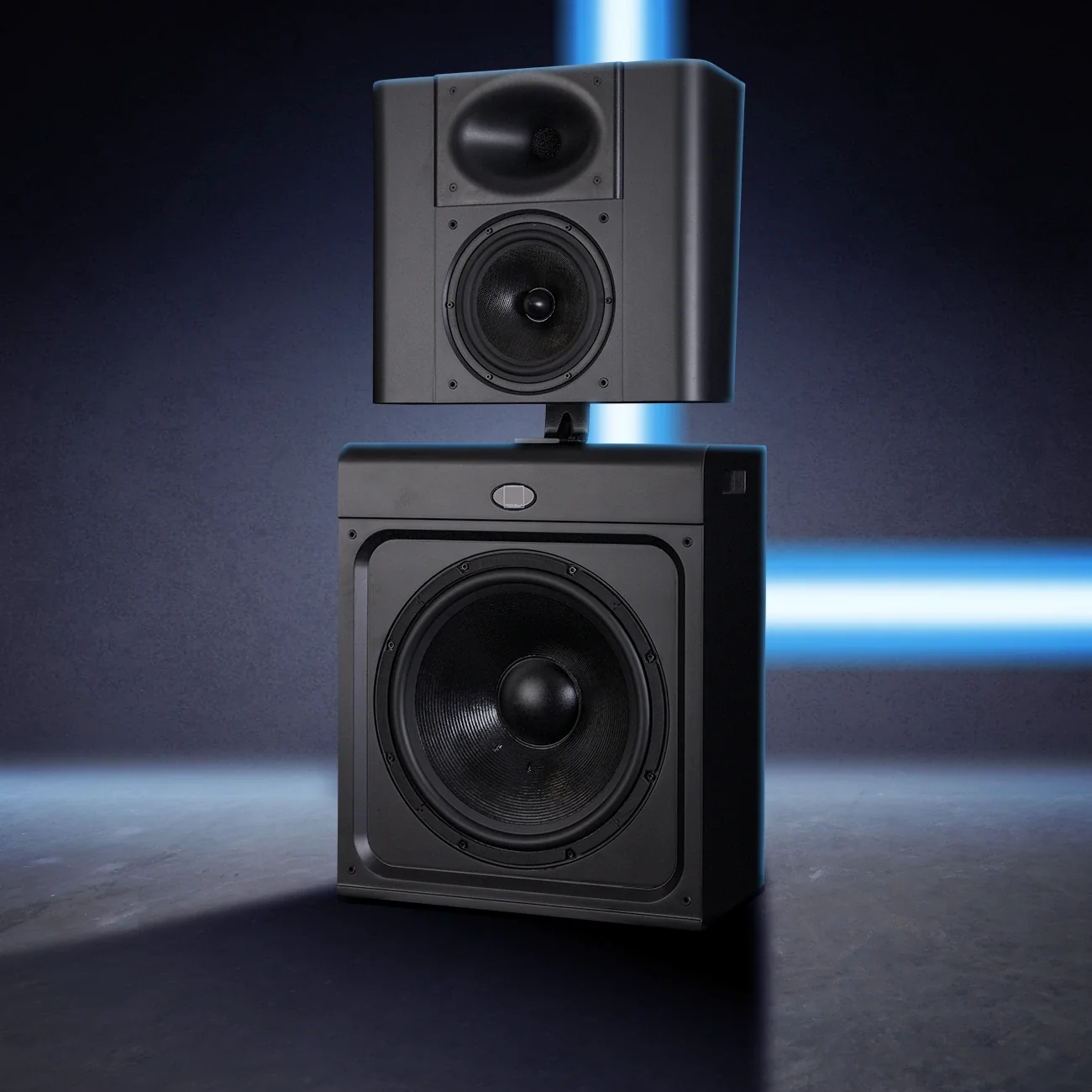

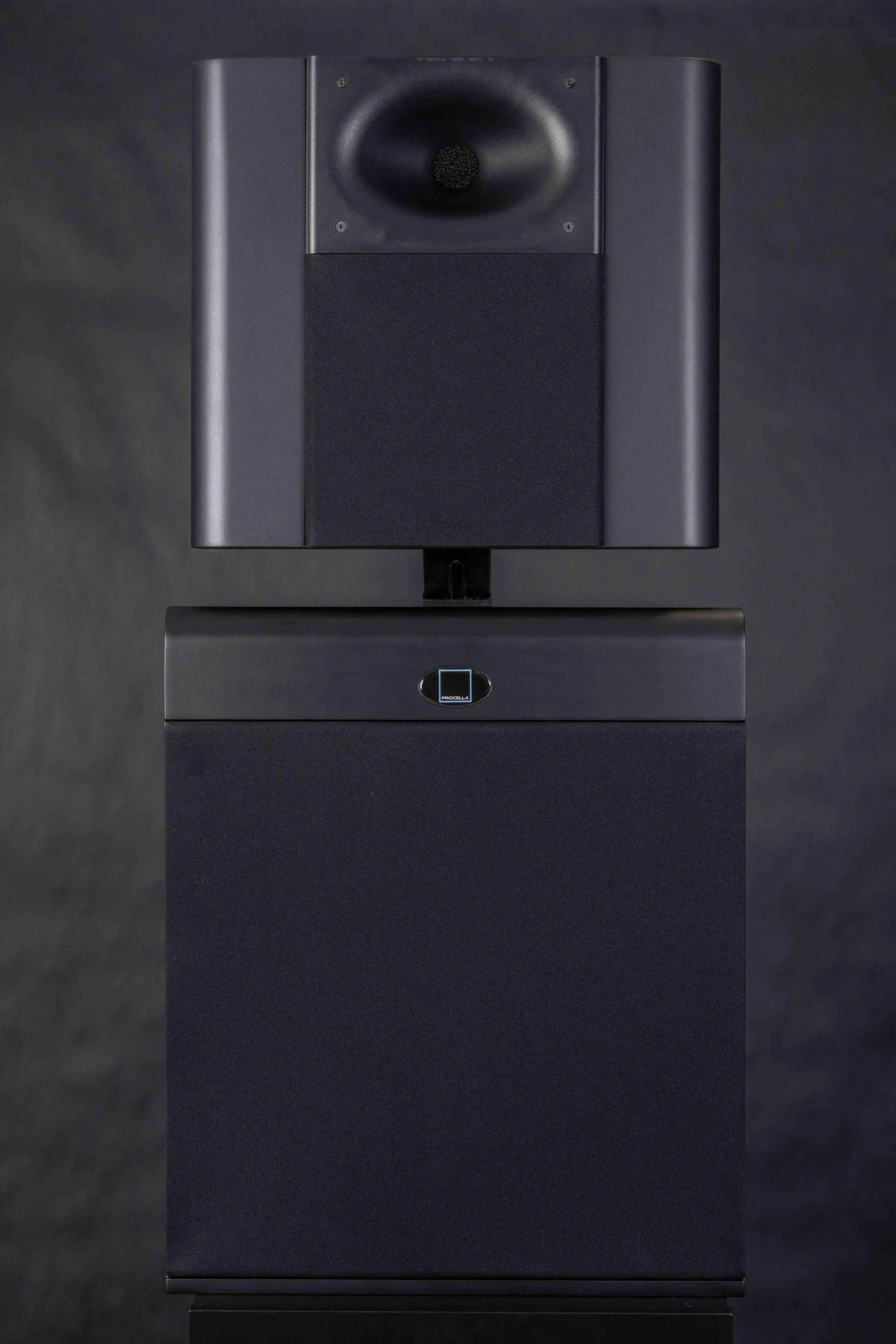

PRODUCT GALLERY
See the product from more than one perspective.
Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
A private-cinema loudspeaker designed from professional screening-room requirements.
P815 is built for large listening distances and THX reference-level playback, with a compression driver on a constant-directivity waveguide, high-output midrange and dedicated 15-inch low-frequency section.
The shallow sealed cabinet is intended to work in a baffle-wall environment rather than as decorative furniture in the room.
SYSTEM ROLE
Where it fits in a cinema.
Baffle wall
Shallow enclosure suits engineered front-wall construction.
Professional crossover
Bi-amplified architecture and DSP presets make electronics part of the loudspeaker system.
ROOM DESIGN
Choose the room conditions before choosing the quantity.
Baffle wallTreat the front wall as part of the loudspeaker loading and acoustic treatment.
AmplificationPlan the required Procella/external amplification channels and DSP.
Screen distanceKeep enough clearance from the acoustically transparent screen to avoid response changes.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response40 Hz–20 kHz (-3 dB)
Coverage80° H × 50° V
Crossover1.6 kHz / 150 Hz
Cabinet depth280 mm
Manufacturer specifications should be confirmed against the current data sheet before final project specification.
RELATED Procella Audio PRODUCTS
P-SeriesP28 Mk3A very-high-output screen loudspeaker for large rooms when maximum dynamics are required without the size of a full-range P815-style system.P-SeriesP610 Mk2A full-range screen-channel concept intended to reduce the compromises of an 80 Hz-only cinema crossover in suitable rooms.P-SeriesP6iW Mk2A high-performance architectural speaker for main, surround or height duties when Procella performance needs to disappear into the room.
CONTINUE THE DESIGN PROCESS
Understand the room around the product.
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the manufacturer installation manual or current data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify P815 in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
