Large LCR
Designed for the front stage of large theatre rooms.
JBL SYNTHESIS · FLAGSHIP LCR
SCL-1

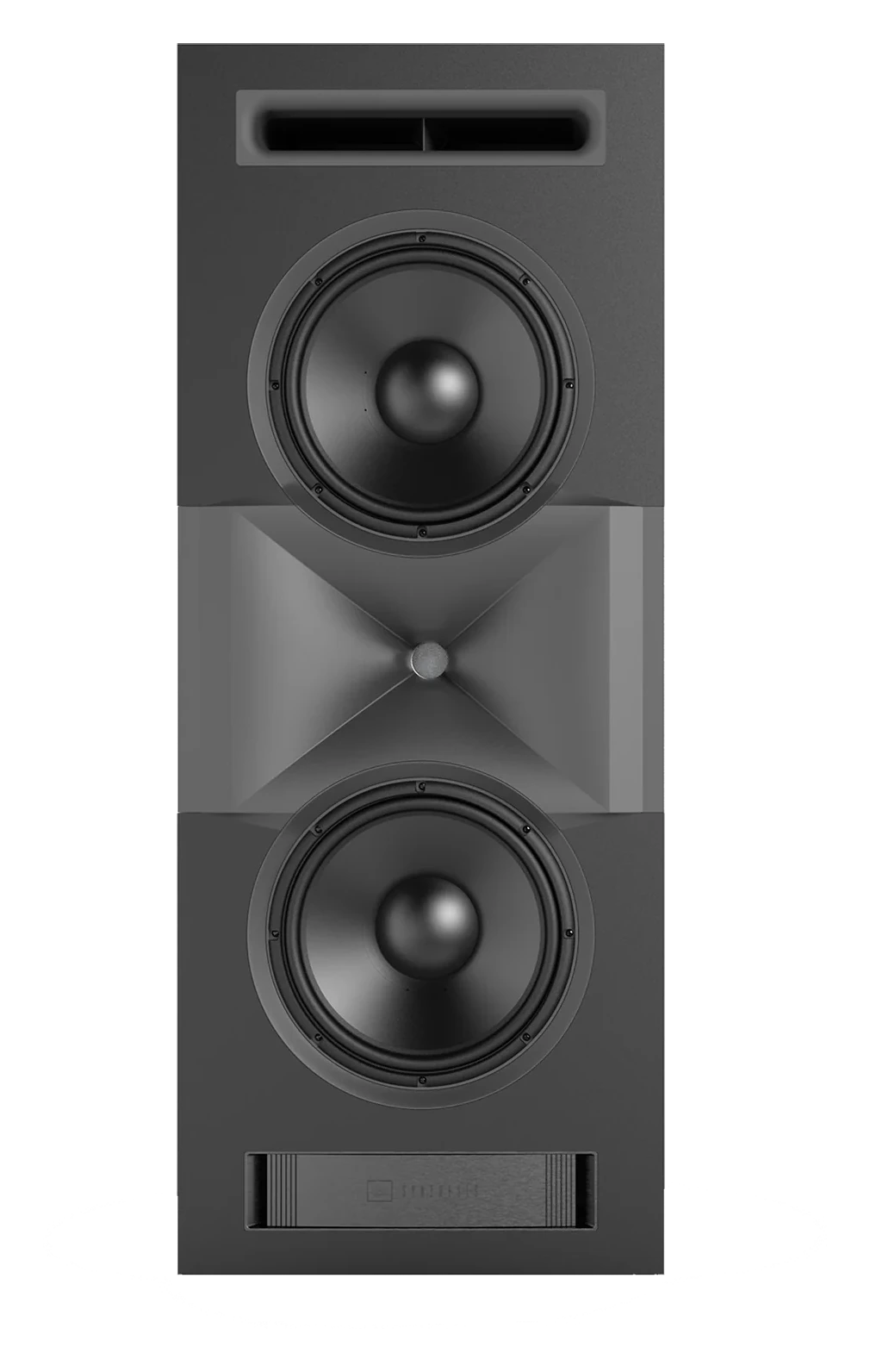

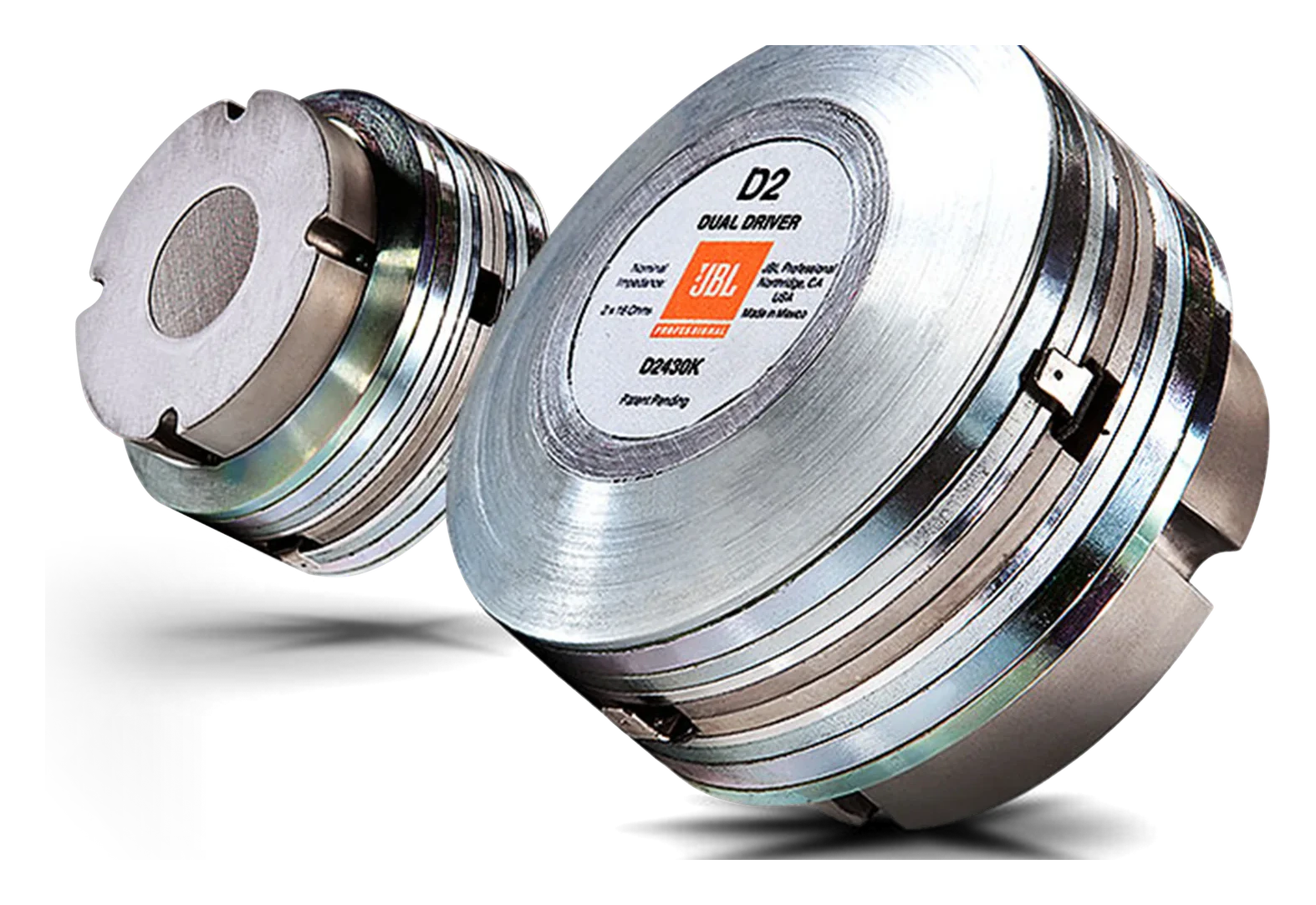

A large-format dual-12-inch custom LCR built for very large cinemas, using a D2430K compression driver on an HDI horn.
SPECIALIST REFERENCE
RoleLCR
ArchitectureCompression driver + HDI horn
WoofersDual 12-inch
ApplicationLarge / extra-large cinema
Sensitivity94 dB
PRODUCT GALLERY
See the product from more than one perspective.

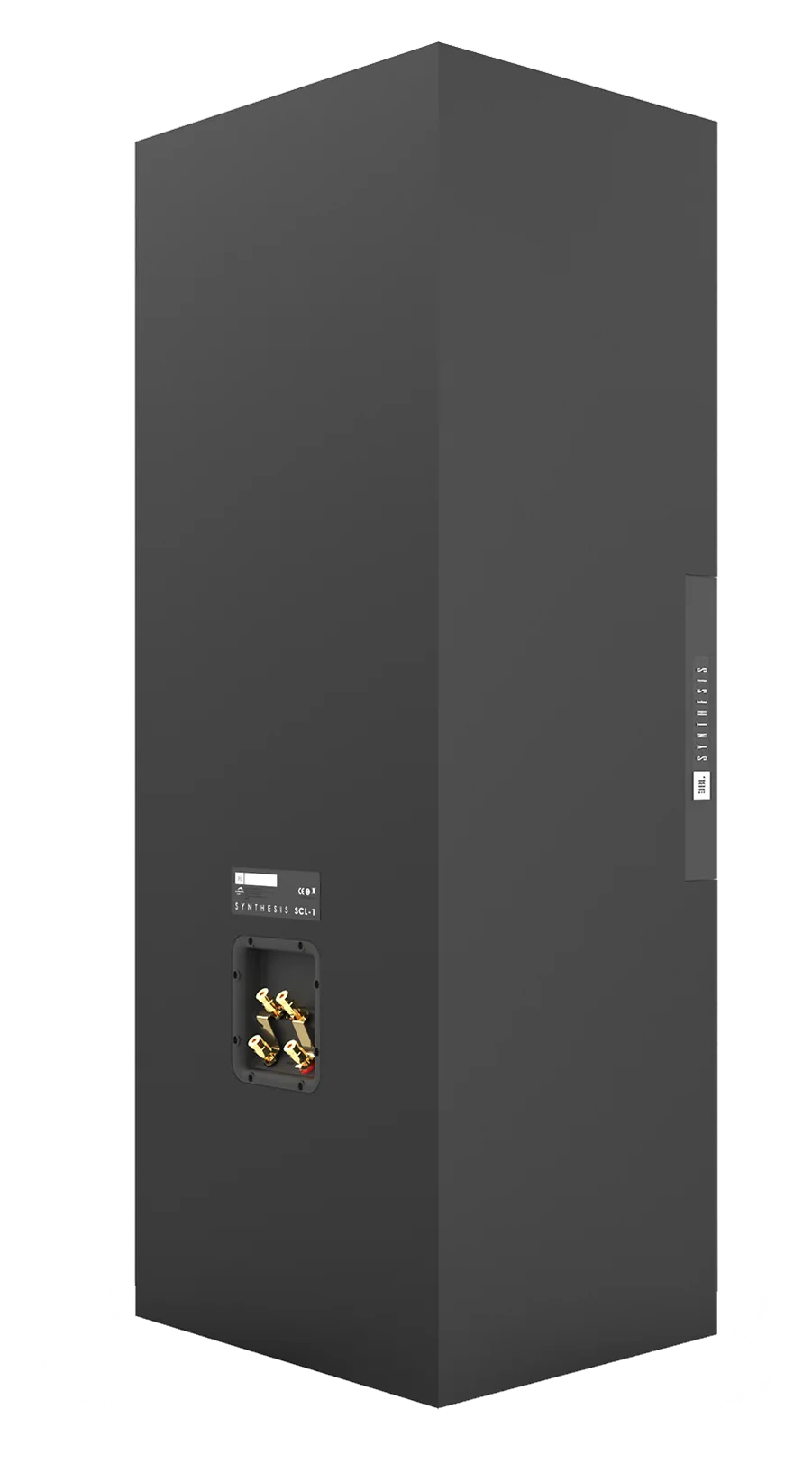

Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
A domestic loudspeaker built with cinema-scale instincts.
The SCL-1 is the flagship of JBL Synthesis Custom Loudspeakers and is optimized for LCR use behind projection screens or in custom cabinetry.
Its large horn and dual 12-inch bass architecture are about maintaining dynamics and low distortion at listening distances where smaller architectural speakers would be working much harder.
SYSTEM ROLE
Where it fits in a cinema.
Projection screen
Particularly natural behind an acoustically transparent screen.
JBL ecosystem
Voiced to integrate with the wider SCL loudspeaker family.
ROOM DESIGN
Choose the room conditions before choosing the quantity.
Baffle wallAllow sufficient depth and service access for a large enclosure.
CoverageUse the horn geometry to map the seating area before construction.
AmplificationThe crossover can support different amplification approaches; decide the architecture early.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response40 Hz–24 kHz (-6 dB)
Sensitivity94 dB / 1 W / 1 m
Nominal impedance4 ohm
Recommended amplifier power500 W RMS
Coverage≈120° H × 100° V @ 10 kHz
Manufacturer specifications should be confirmed against the current data sheet before final project specification.
RELATED JBL Synthesis PRODUCTS
SCL SeriesSCL-2A 2.5-way triple-8-inch in-wall speaker with a compression driver and HDI horn for high-output LCR or surround use.SCL SeriesSCL-4A sealed two-way 7-inch in-wall loudspeaker with JBL’s 2409H compression driver and HDI horn.SCL SeriesSCL-5A two-way 7-inch in-ceiling member of the SCL family for immersive height channels and architectural cinema applications.
CONTINUE THE DESIGN PROCESS
Understand the room around the product.
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the manufacturer installation manual or current data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify SCL-1 in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
