LCR
A high-sensitivity concealed front-channel option.
MARTINLOGAN · MASTERPIECE CI · CONTROLLED DISPERSION
Monument 7XW
A sealed in-wall speaker with Folded Motion XT technology, 95 dB sensitivity and controlled 80° × 30° tweeter dispersion.
REFERENCE ARCHITECTURAL
RoleLCR / surround
ArchitectureFolded Motion XT
Sensitivity95 dB
Dispersion80° × 30°

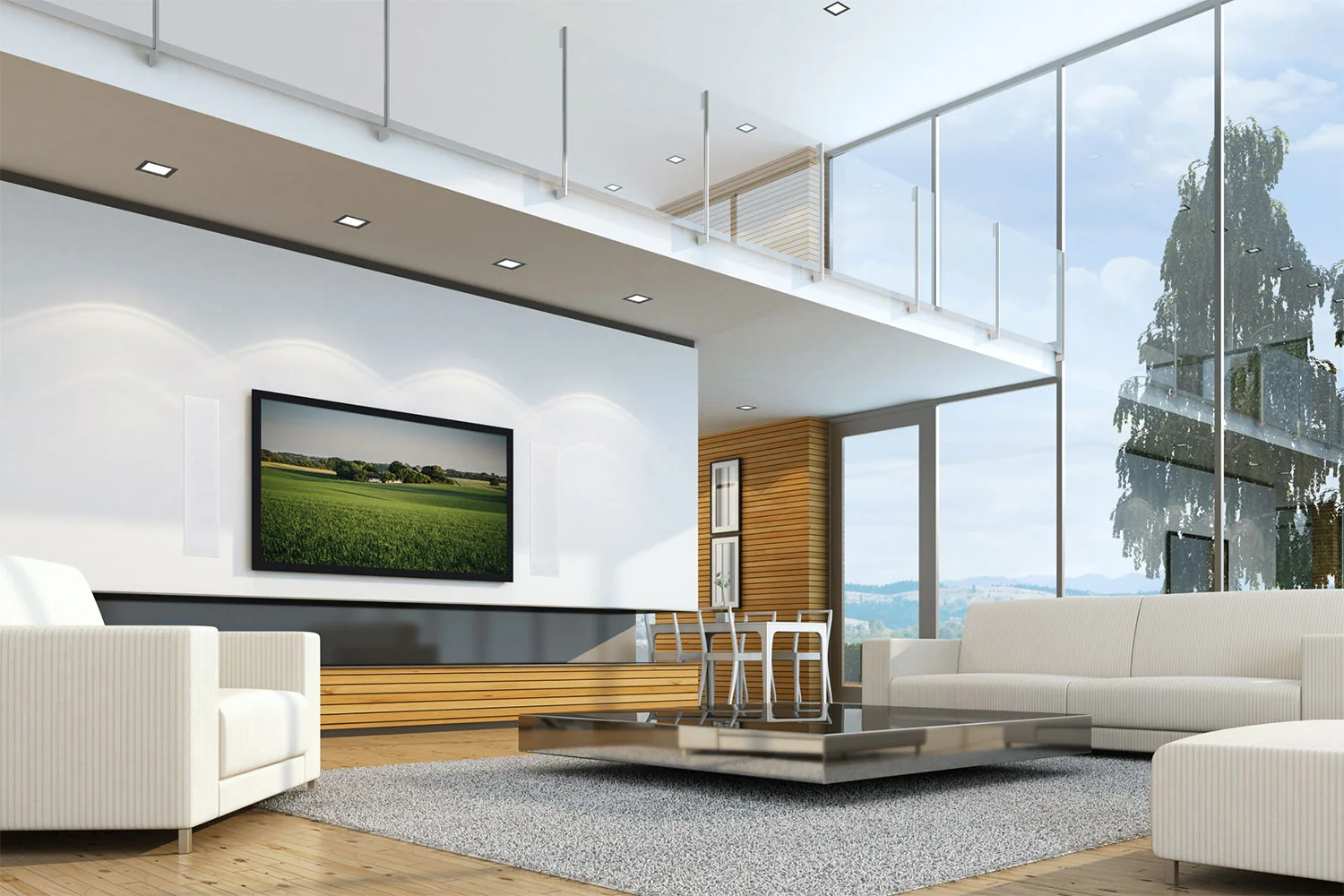

PRODUCT GALLERY
See the product from more than one perspective.
Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
Architectural does not have to mean broad, uncontrolled radiation.

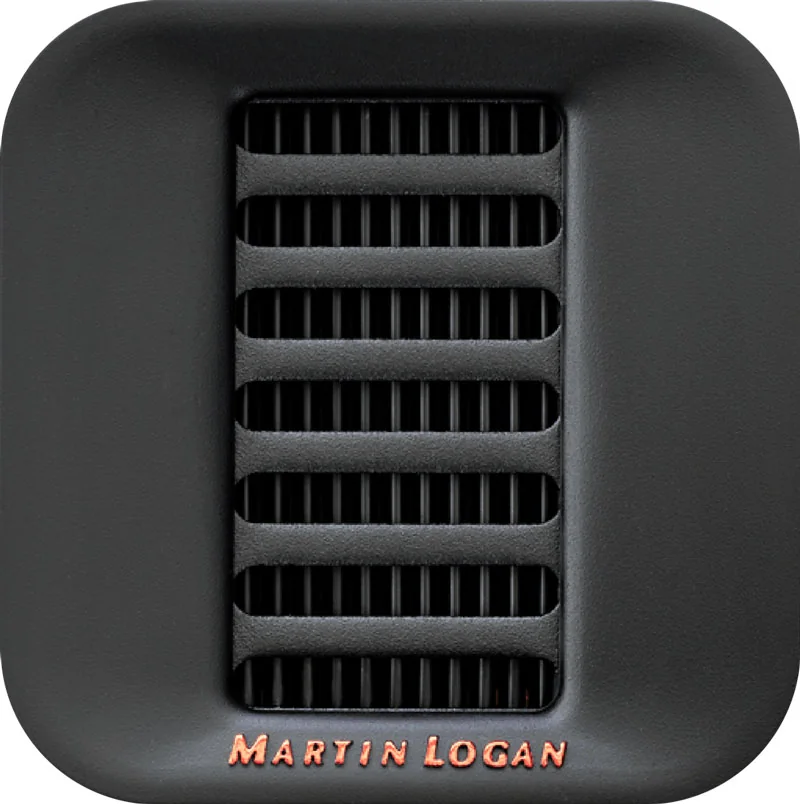

Monument 7XW combines a Folded Motion XT Obsidian high-frequency driver with carbon-fibre cone drivers inside a sealed back-box format.
Its 80° × 30° tweeter dispersion makes orientation and aiming meaningful — especially in cinemas where reflections and multiple rows need to be considered deliberately.
SYSTEM ROLE
Where it fits in a cinema.
Surrounds
Controlled dispersion can be useful for side/rear placement.
On-wall option
MartinLogan also provides an on-wall frame path for projects that cannot recess the cabinet.
ROOM DESIGN
Choose the room conditions before choosing the quantity.
OrientationThe tweeter can be rotated for horizontal or vertical installations.
Wall cavityThe sealed enclosure improves consistency but still requires correct framing.
CoverageMatch the 80° × 30° pattern to seating geometry.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response52–25,000 Hz ±3 dB
Sensitivity95 dB / 2.83 V / m
Impedance4 ohm
Tweeter dispersion80° × 30°
Manufacturer specifications should be confirmed against the current data sheet before final project specification.
RELATED MartinLogan PRODUCTS
Masterpiece CIStatement 40XWA seven-foot-tall, 40-driver in-wall line source with sixteen Folded Motion XT tweeters, sixteen midrange drivers and eight 6.5-inch woofers.Masterpiece CITribute 5XWA smaller Masterpiece CI in-wall with Folded Motion XT high frequencies, sealed construction and 94 dB sensitivity.Masterpiece CISistine 4XCThe Masterpiece CI in-ceiling route for height channels where a MartinLogan architectural system needs to extend overhead.
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the manufacturer installation manual or current data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify Monument 7XW in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
