Compact LCR
Useful where wall space is limited.
MARTINLOGAN · MASTERPIECE CI · COMPACT
Tribute 5XW
A smaller Masterpiece CI in-wall with Folded Motion XT high frequencies, sealed construction and 94 dB sensitivity.
REFERENCE ARCHITECTURAL
RoleLCR / surround
ArchitectureFolded Motion XT
Sensitivity94 dB
Dispersion80° × 30°
PRODUCT GALLERY
See the product from more than one perspective.

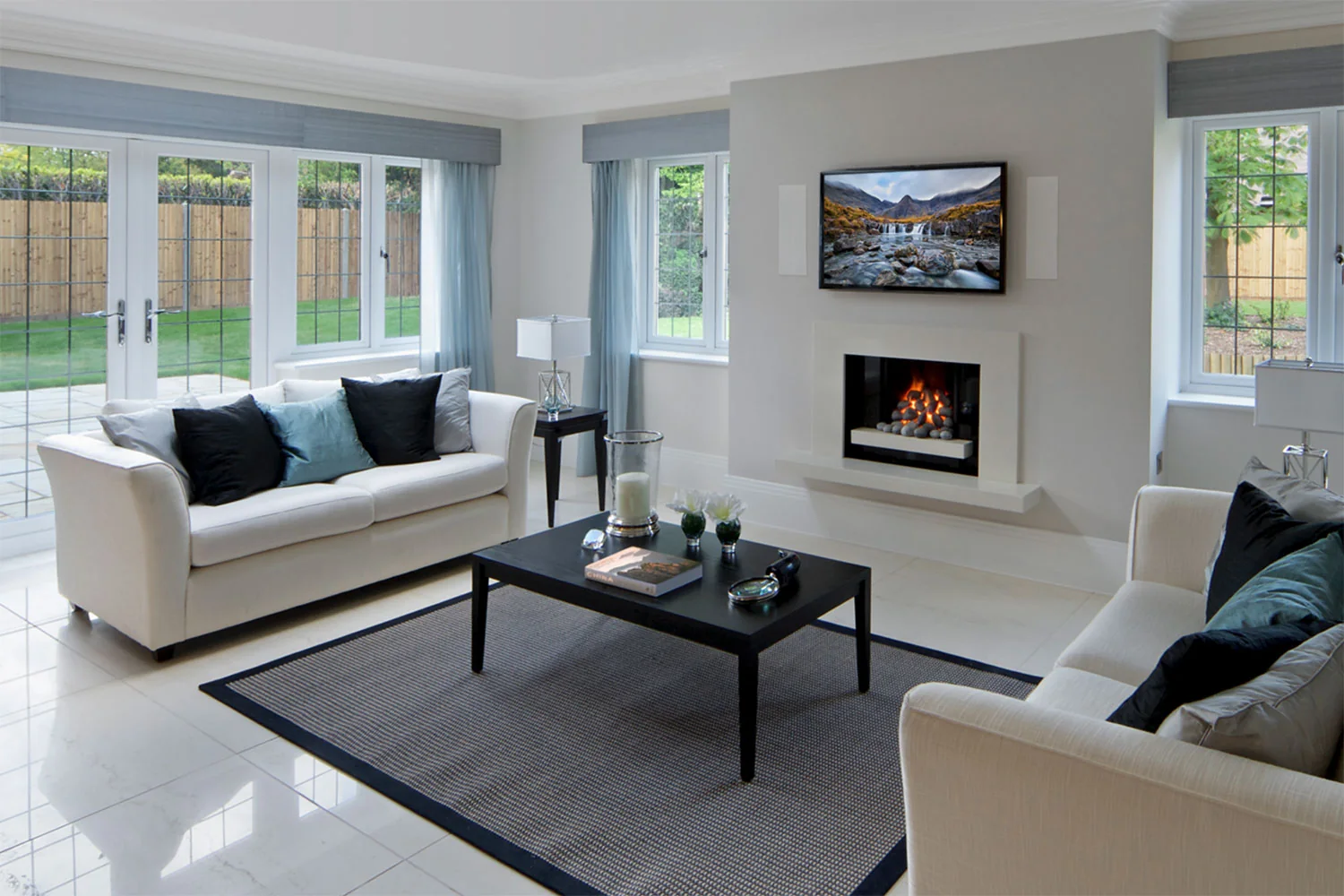

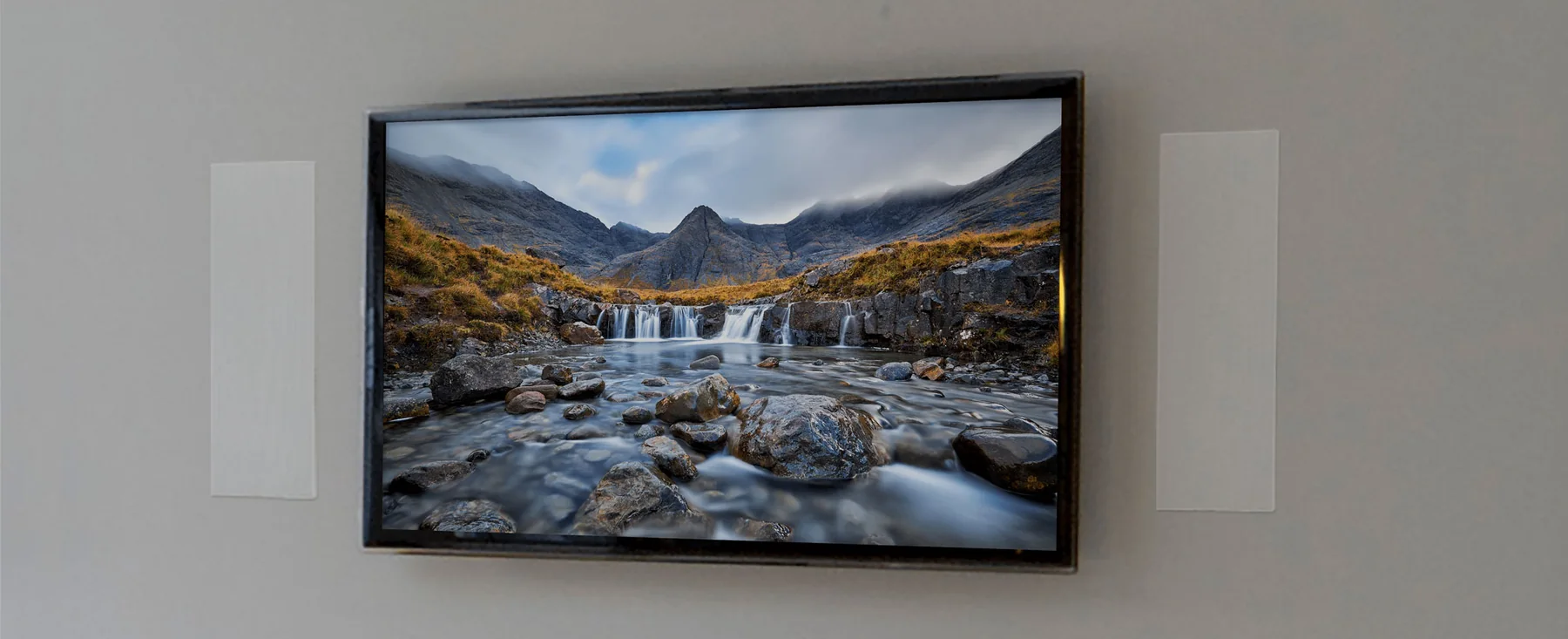

Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
A smaller architectural format without stepping out of the Masterpiece family.
Tribute 5XW gives the Masterpiece CI range a more compact option for rooms or channel positions that do not need the physical scale of Monument or Statement.
That can be particularly useful for matching surrounds and rear channels to a more ambitious front stage.
SYSTEM ROLE
Where it fits in a cinema.
Surrounds
A natural architectural base-layer role.
On-wall conversion

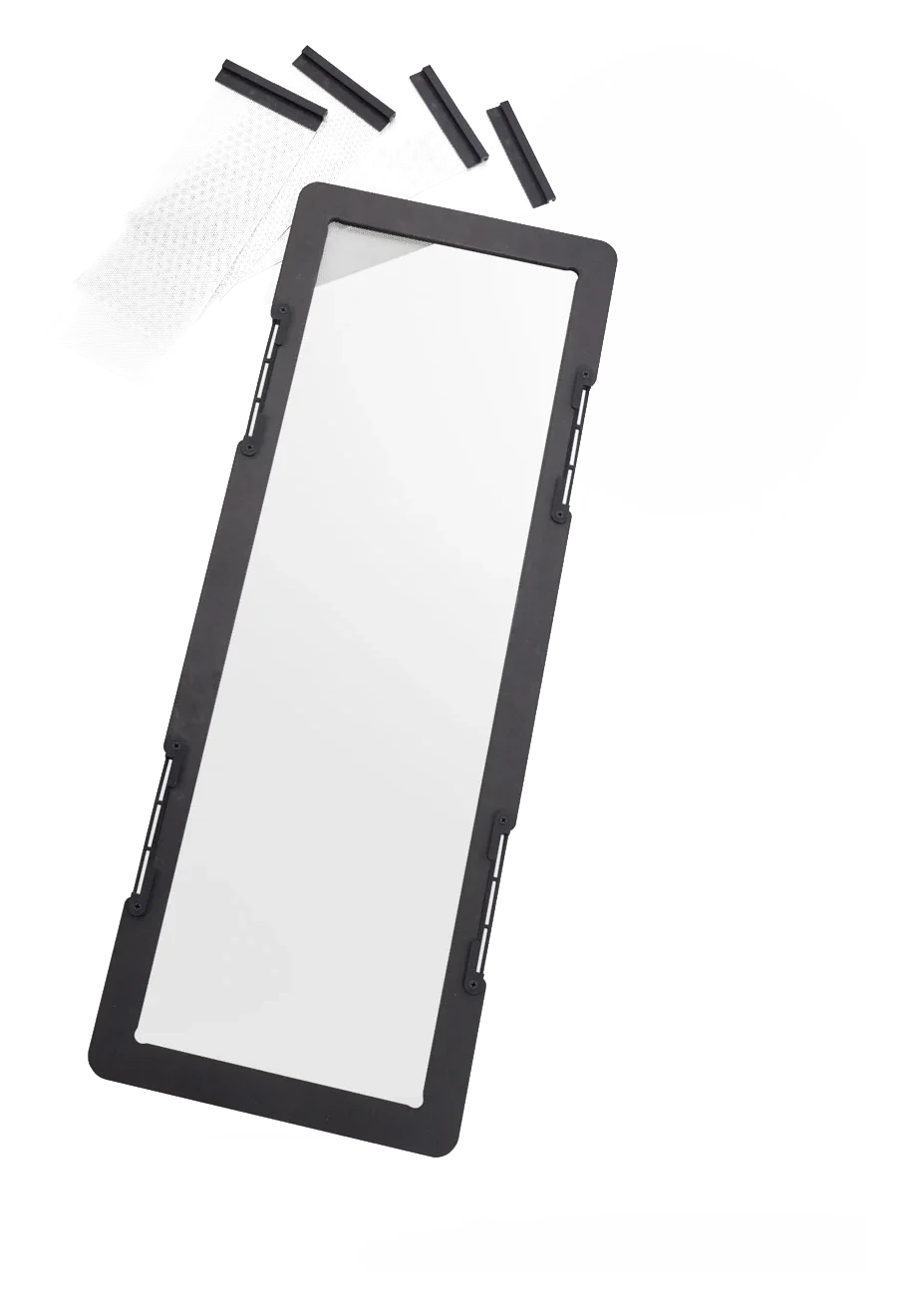

Can use the available on-wall frame when a recessed installation is not possible.
ROOM DESIGN
Choose the room conditions before choosing the quantity.
OrientationThe rotatable tweeter supports vertical or horizontal layouts.
OutputChoose it from listening distance and target SPL, not simply because it fits.
Bass managementThe 71 Hz low-frequency response still points toward a normal cinema crossover strategy.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response71–25,000 Hz ±3 dB
Sensitivity94 dB / 2.83 V / m
Impedance4 ohm
Tweeter dispersion80° × 30°
Manufacturer specifications should be confirmed against the current data sheet before final project specification.
RELATED MartinLogan PRODUCTS
Masterpiece CIStatement 40XWA seven-foot-tall, 40-driver in-wall line source with sixteen Folded Motion XT tweeters, sixteen midrange drivers and eight 6.5-inch woofers.Masterpiece CIMonument 7XWA sealed in-wall speaker with Folded Motion XT technology, 95 dB sensitivity and controlled 80° × 30° tweeter dispersion.Masterpiece CISistine 4XCThe Masterpiece CI in-ceiling route for height channels where a MartinLogan architectural system needs to extend overhead.
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the manufacturer installation manual or current data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify Tribute 5XW in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
