Reference LCR
Can create a completely concealed high-output front stage.
MARTINLOGAN · MASTERPIECE CI · LINE SOURCE
Statement 40XW
A seven-foot-tall, 40-driver in-wall line source with sixteen Folded Motion XT tweeters, sixteen midrange drivers and eight 6.5-inch woofers.
SPECIALIST REFERENCE
RoleLCR / reference stereo
Architecture40-driver in-wall line source
Sensitivity95 dB / 2.83 V / m
Response48 Hz–25 kHz ±3 dB
PRODUCT GALLERY
See the product from more than one perspective.

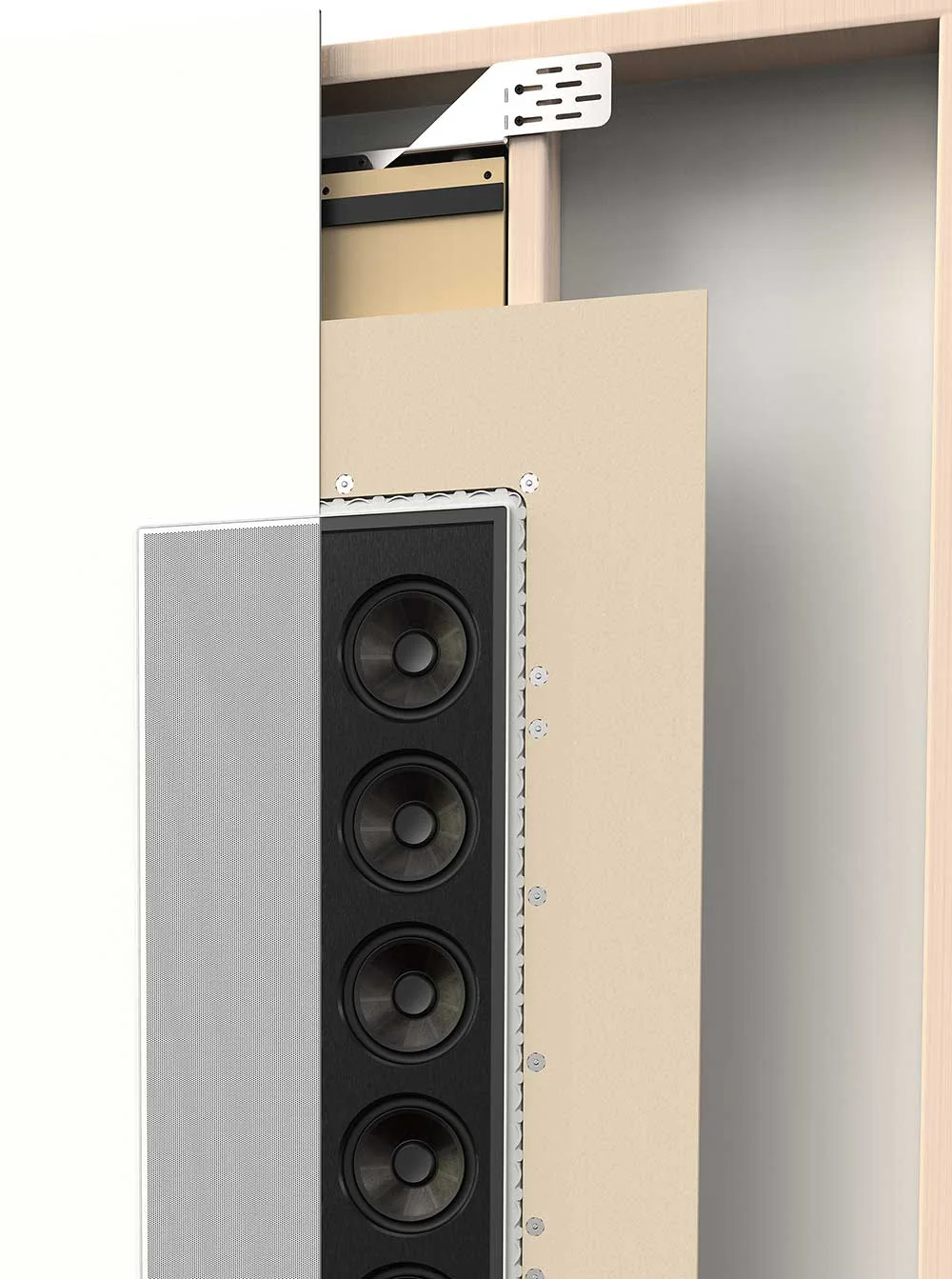

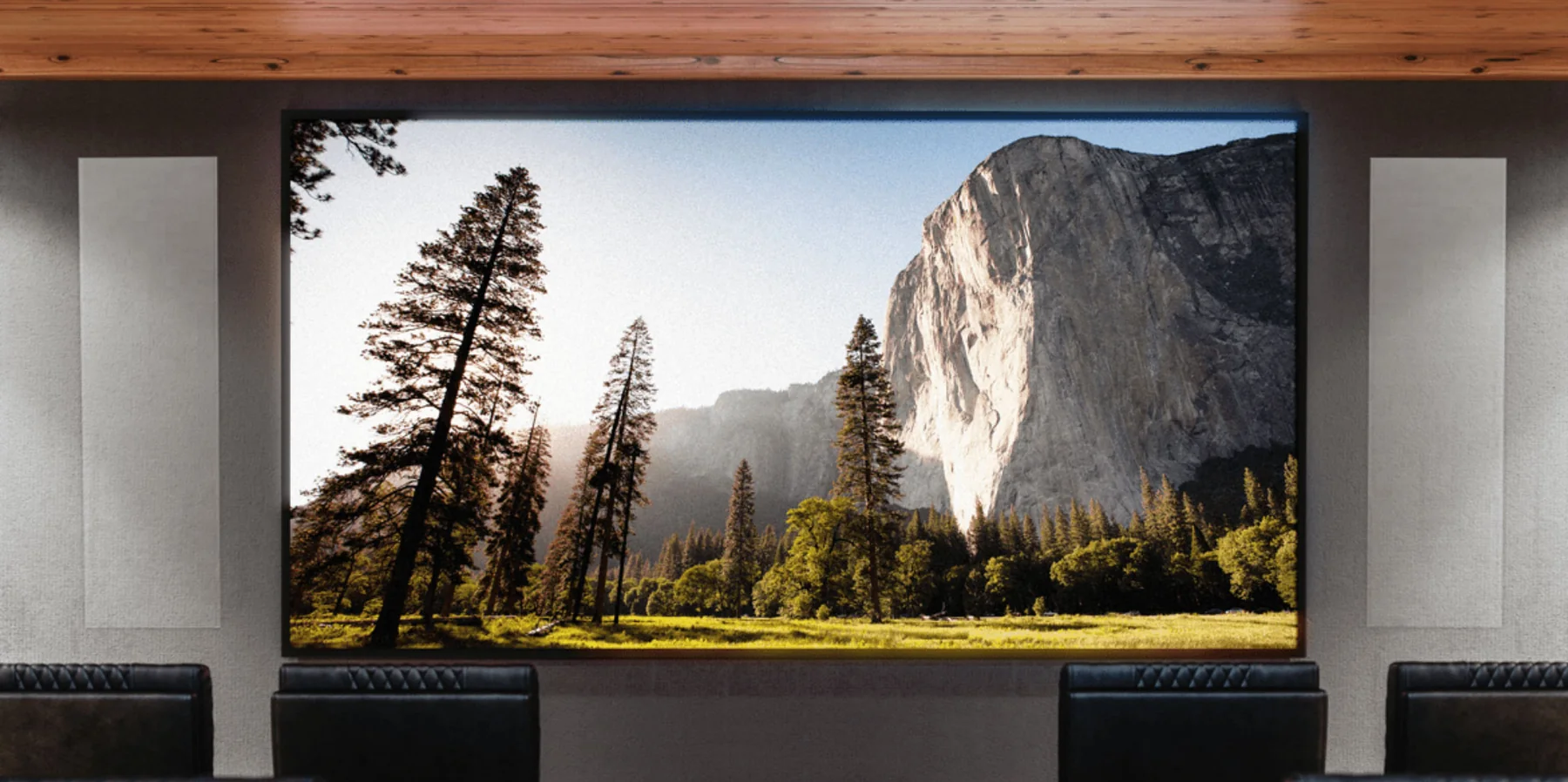

Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
A line source hidden inside the wall.
Statement 40XW is one of the most extreme architectural loudspeakers in the category. Its 52-inch stack of thin-film tweeters and 40-driver total architecture are designed to create a high-efficiency line source without occupying floor space.
The installation is not a normal in-wall job: the product requires dedicated structural planning and its own installation kit.
SYSTEM ROLE
Where it fits in a cinema.
Large listening areas
Line-source behaviour is intended to maintain dynamic scale across large spaces.
Architectural statement
The loudspeaker disappears visually despite its physical scale.
ROOM DESIGN
Choose the room conditions before choosing the quantity.
FramingThe wall should be engineered around the speaker, not modified casually on site.
Screen positionBehind-screen use requires early coordination of screen-wall depth and speaker height.
AmplificationA high-performance line source deserves amplifier headroom and careful channel matching.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response48–25,000 Hz ±3 dB
Sensitivity95 dB / 2.83 V / m
Impedance4 ohms
Drivers16 Folded Motion XT + 16 midrange + 8 woofers
EnclosureSealed in-wall back box
Manufacturer specifications should be confirmed against the current data sheet before final project specification.
RELATED MartinLogan PRODUCTS
Masterpiece CIMonument 7XWA sealed in-wall speaker with Folded Motion XT technology, 95 dB sensitivity and controlled 80° × 30° tweeter dispersion.Masterpiece CITribute 5XWA smaller Masterpiece CI in-wall with Folded Motion XT high frequencies, sealed construction and 94 dB sensitivity.Masterpiece CISistine 4XCThe Masterpiece CI in-ceiling route for height channels where a MartinLogan architectural system needs to extend overhead.
CONTINUE THE DESIGN PROCESS
Understand the room around the product.
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the manufacturer installation manual or current data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify Statement 40XW in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
