Front L/R
A strong option for acoustically transparent screens and hidden front stages.
PERLISTEN · S-SERIES · THX DOMINUS
S7i-LR
A flagship four-woofer in-wall LR with PERLISTEN’s DPC array and THX Dominus certification.
REFERENCE ARCHITECTURAL
RoleL/R / LCR
ArchitectureDPC controlled directivity
Sensitivity91.9 dB
Peak SPL119.7 dB @ 1 m
PRODUCT GALLERY
See the product from more than one perspective.

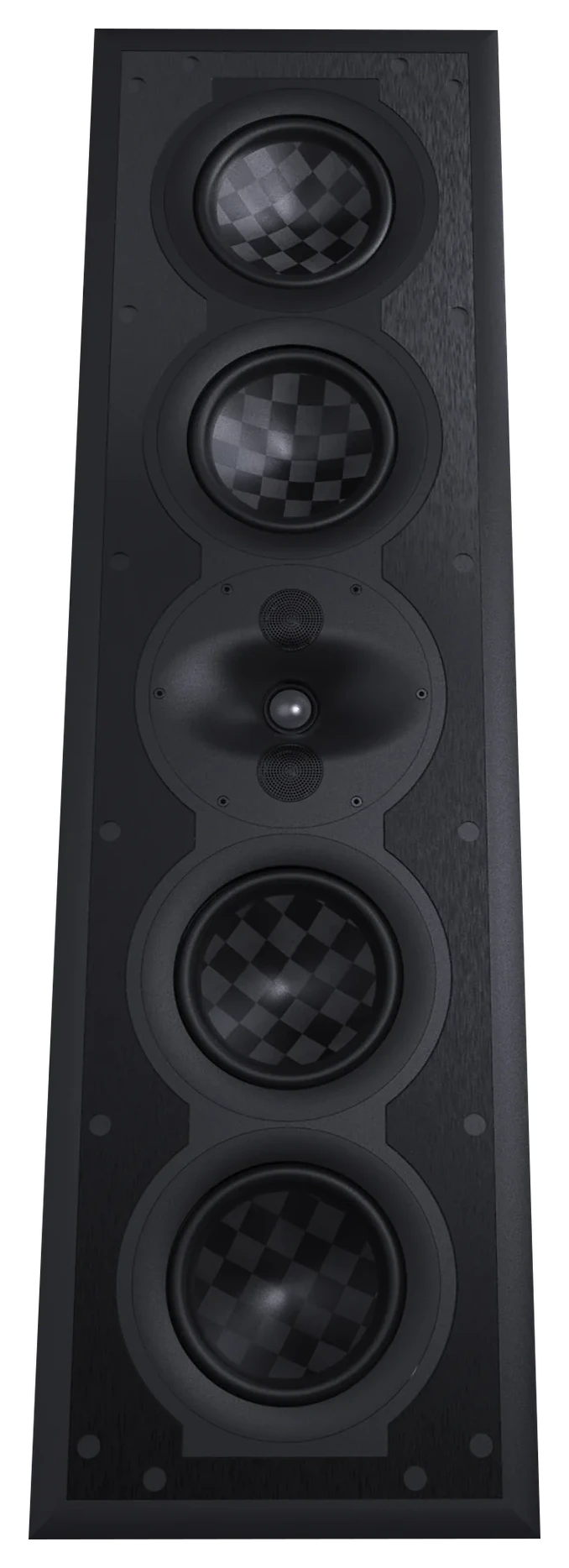

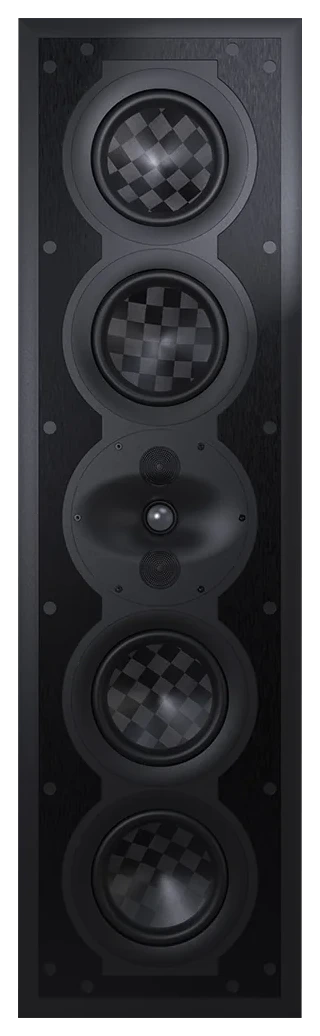

Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
A reference front channel that disappears into a four-inch wall depth.
S7i-LR adapts the S7t architecture to an in-wall format using an integral aluminium rear enclosure and PERLISTEN’s DPC array.
For a cinema, the interesting combination is output plus directivity control: the product can be hidden while still being designed around a predictable radiation pattern.
SYSTEM ROLE
Where it fits in a cinema.
Media rooms
Can also serve as architectural L/R outside a dedicated cinema.
Large rooms
THX Dominus certification positions it for substantial room volumes.
ROOM DESIGN
Choose the room conditions before choosing the quantity.
Wall depthThe shallow enclosure still needs a precisely coordinated cut-out and framing zone.
AmplificationThe 4-ohm nominal load and high output capability deserve serious amplification.
CoverageUse the DPC radiation pattern to determine height and toe orientation.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Response80 Hz–20 kHz ±1.5 dB
Sensitivity91.9 dB / 2.83 V / 1 m
Impedance4 Ω nominal
Recommended power100–600 W RMS
Dimensions1036.6 × 298.6 × 111.2 mm
Manufacturer specifications should be confirmed against the current data sheet before final project specification.
RELATED PERLISTEN PRODUCTS
S-Series ArchitecturalS7i-CA horizontal flagship in-wall centre using the same DPC-array and four-woofer architecture as the S7i-LR.S-Series ArchitecturalS4i-LCRSA compact DPC-array in-wall that can serve LCR or surround duties across small, medium and large cinemas.S-Series ArchitecturalS3icAn S-Series architectural in-ceiling speaker for Atmos and height channels in systems built around the DPC family.
CONTINUE THE DESIGN PROCESS
Understand the room around the product.
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the manufacturer installation manual or current data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify S7i-LR in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
