Screen LCR
Its natural role is as a hidden left / centre / right channel behind an acoustically transparent screen.
WISDOM AUDIO · PRIVATE CINEMA LINE SOURCE · 72-INCH PMD
Sage Cinema Line 3

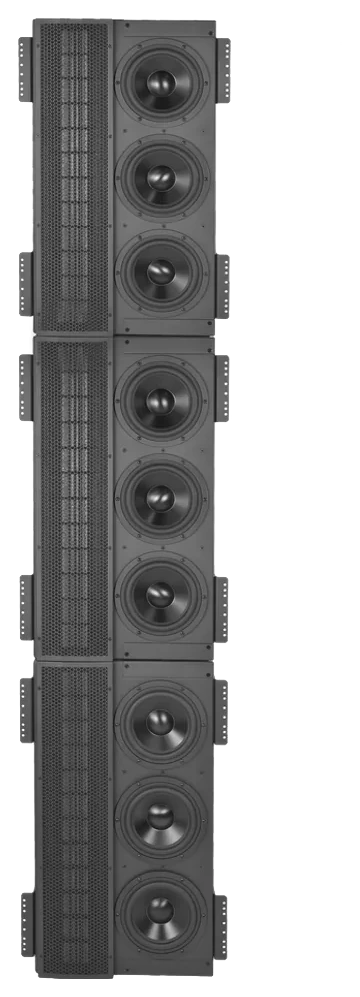

A three-module Sage Cinema line source built around 72 inches of planar-magnetic radiating area and nine high-output woofers for hidden installations behind screens and fabric walls.
SAGE CINEMA LINE SOURCE
RoleReference LCR
Architecture72-inch planar line source
Response60 Hz–20 kHz
Sensitivity95 dB
PRODUCT GALLERY
See the product from more than one perspective.
Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
Line 3 is a purpose-built private-cinema speaker rather than an architectural hi-fi speaker adapted to cinema.
Wisdom’s Sage Cinema Line 3 is explicitly intended for high-performance media rooms and private cinemas. Three 24-inch PMD sections create a 72-inch line source, with nine woofers and an outboard active crossover / DSP requirement.
That modular architecture is useful behind a projection screen or fabric wall because the speaker can be treated as part of the room construction rather than a visible object.
SYSTEM ROLE
Where it fits in a cinema.
Large multi-row rooms
The line-source geometry is particularly relevant when seat-to-seat consistency matters over distance.
Reference playback
The output architecture and DSP requirement put it firmly in the engineered-cinema category.
ROOM DESIGN
The radiation pattern must suit the seats and the architecture.
Baffle / wallCoordinate the physical modules with the screen wall before construction.
ElectronicsOutboard active crossover, DSP and two channels of amplification are part of the system design.
CoverageUse the line-source behaviour intentionally rather than treating it as a conventional point source.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response60 Hz–20 kHz ±2 dB relative to target curve
Impedance6 Ω
Continuous power750 W
Sensitivity95 dB
Planar magnetic array72 inches
Dimensions194.3 × 35.6 × 13.3 cm
Technical details should be confirmed against the current Wisdom Audio product and installation documentation before final specification.
RELATED WISDOM AUDIO PRODUCTS
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the current manufacturer installation manual or data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify Sage Cinema Line 3 in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
