Screen LCR
Best understood as a reference screen-channel solution for very large rooms.
WISDOM AUDIO · PRIVATE CINEMA LINE SOURCE · 96-INCH PMD
Sage Cinema Line 4

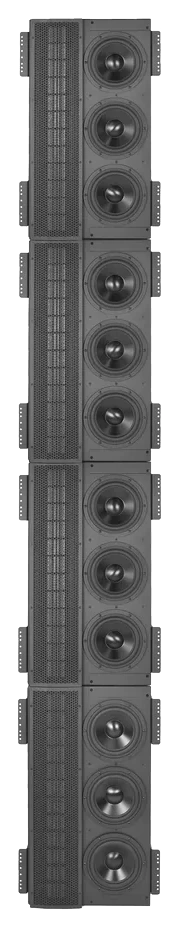

The largest selected Sage Cinema line-source platform: four 24-inch planar-magnetic modules, twelve high-output woofers and a 96-inch vertical radiating aperture for very large private cinemas.
EXTREME SAGE CINEMA LINE SOURCE
RoleReference LCR
Architecture96-inch planar line source
Response60 Hz–20 kHz
Sensitivity98 dB
PRODUCT GALLERY
See the product from more than one perspective.
Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
Line 4 is a room-scale loudspeaker that should be designed into the cinema from the beginning.
With four 24-inch planar-magnetic modules and twelve woofers, Sage Cinema Line 4 is not a product to choose after the room is built. Its physical height, amplification, DSP and screen-wall integration need to be coordinated with the architecture.
The advantage is a huge vertical line source intended to maintain level over distance while reducing floor and ceiling interaction — particularly useful in deep, multi-row cinemas.
SYSTEM ROLE
Where it fits in a cinema.

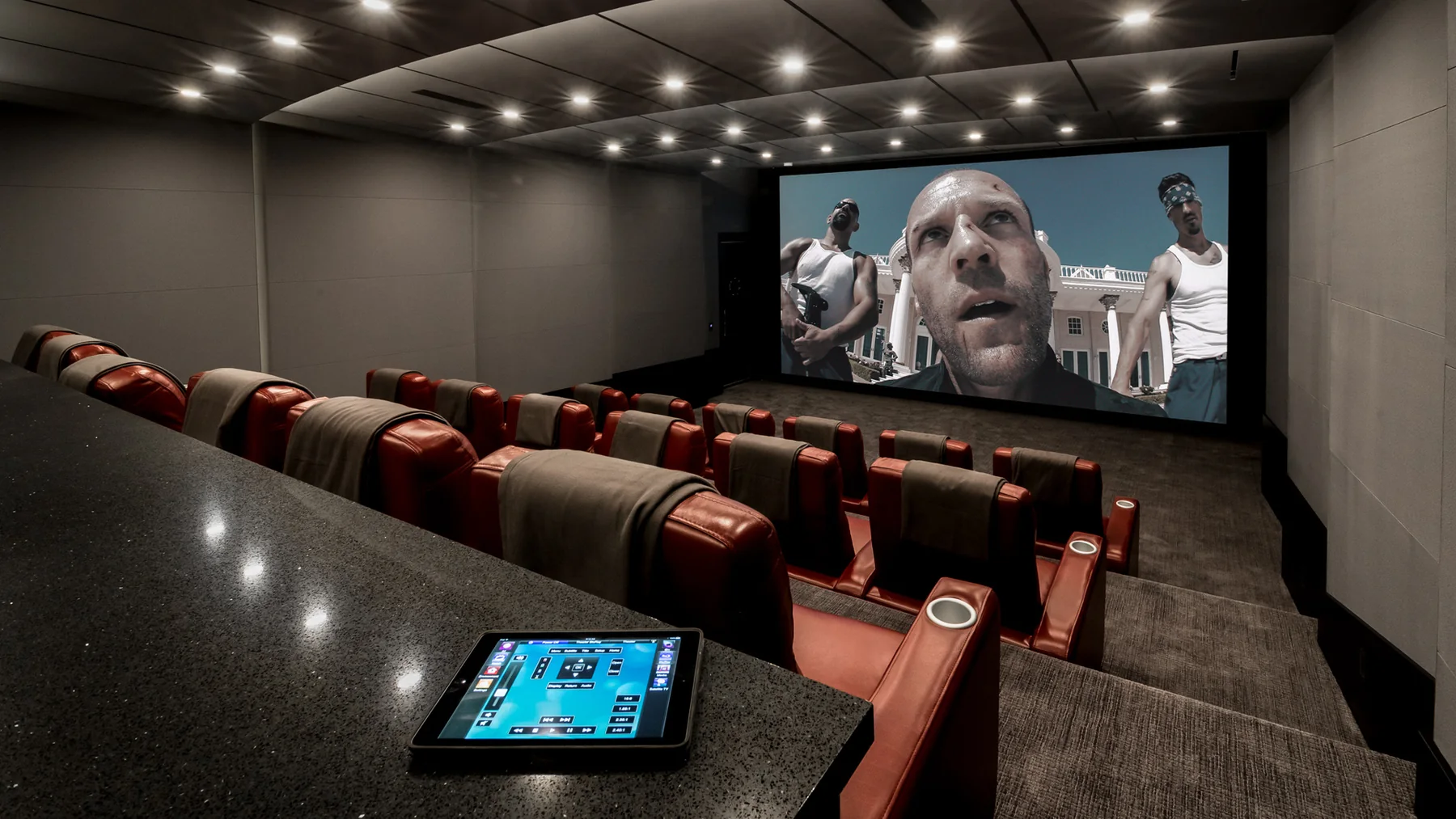

Deep seating layouts
The line-source geometry is intended to support more consistent level across distance.
High-output cinema
Its sensitivity and power handling support demanding playback targets when the rest of the system is sized accordingly.
ROOM DESIGN
The radiation pattern must suit the seats and the architecture.
Physical integrationAt roughly 2.59 metres high, the screen wall and room height must be planned around it.
ElectronicsWisdom specifies outboard active crossover, DSP and four channels of amplification.
Screen designCoordinate acoustic transparency, speaker-to-screen spacing and the baffle / wall strategy.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response60 Hz–20 kHz ±2 dB relative to target curve
Impedance4 Ω
Continuous power1000 W
Sensitivity98 dB
Planar magnetic array96 inches
Dimensions259 × 35.6 × 13.3 cm
Technical details should be confirmed against the current Wisdom Audio product and installation documentation before final specification.
RELATED WISDOM AUDIO PRODUCTS
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the current manufacturer installation manual or data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify Sage Cinema Line 4 in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
