Atmos layer
A purpose-selected height speaker for immersive audio.
WISDOM AUDIO · IN-CEILING · PLANAR MAGNETIC
Insight iCI6
An architectural in-ceiling option that extends the Wisdom system into the height layer without defaulting to a generic ceiling speaker.
IMMERSIVE HEIGHT
RoleAtmos / height / LCR
ArchitecturePlanar magnetic + 6.5-inch woofer
Response48 Hz–20 kHz ±3 dB
Coverage150° (-6 dB)
PRODUCT GALLERY
See the product from more than one perspective.

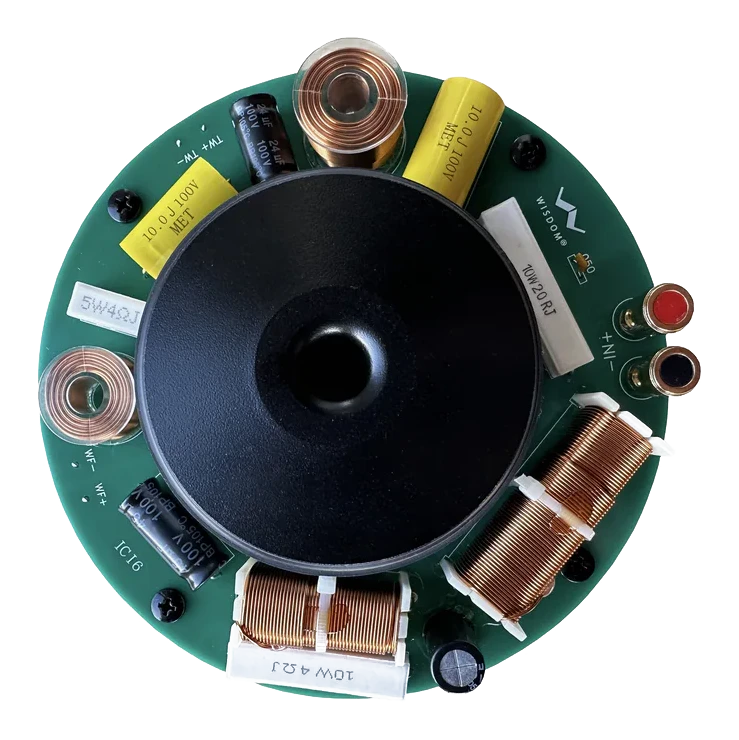

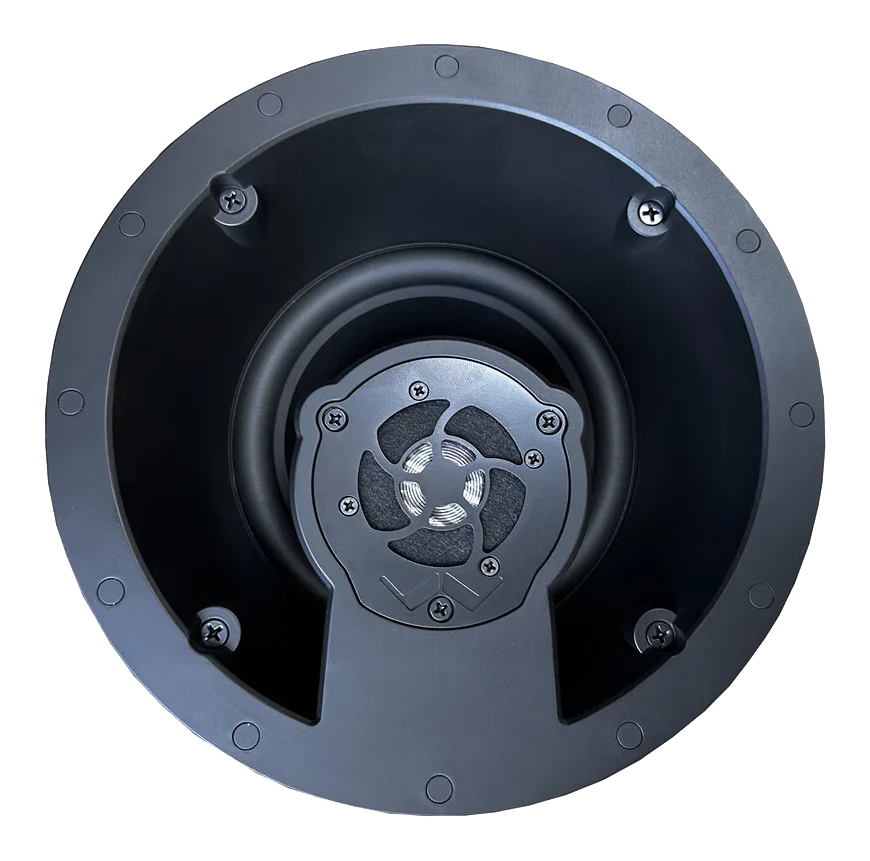

Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
The height layer deserves the same design attention as the screen channels.
The iCI6 gives a Wisdom-based cinema an architectural height-channel option that keeps the immersive layer within the same overall technology ecosystem.
For a serious Atmos room, the important question is not simply whether a speaker fits in the ceiling; it is whether its coverage and output align with the seating geometry.
SYSTEM ROLE
Where it fits in a cinema.
Architectural finish
Keeps the speaker visually discreet in completed interiors.
System voicing
Useful when the room is being designed around a broader Wisdom loudspeaker package.
ROOM DESIGN
Choose the room conditions before choosing the quantity.
Ceiling depthResolve joists, services, HVAC and speaker depth before final ceiling coordination.
CoverageAim the acoustic coverage at seats, not merely at the floor plan centre.
Level matchingCalibrate arrival time and level to the base layer after installation.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response48 Hz–20 kHz ±3 dB
Low-frequency extension32 Hz (-10 dB)
Coverage150° (-6 dB, referenced off-axis)
Sensitivity82 dB
Impedance8 ohms
Manufacturer specifications should be confirmed against the current data sheet before final project specification.
RELATED Wisdom Audio PRODUCTS
Insight SeriesInsight L8iA 48-inch planar-magnetic line-source in-wall speaker designed to reduce floor/ceiling interaction and maintain level more consistently over distance.Insight SeriesInsight P6iA tall planar-magnetic point-source in-wall loudspeaker with controlled 60° × 30° coverage and high output for screen and surround roles.Wisdom SeriesWisdom Series LS4An extreme 80-inch planar-magnetic line source capable of cinema-scale output while dramatically reducing vertical room interaction.
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the manufacturer installation manual or current data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify Insight iCI6 in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
