Multi-row cinema
Line-source behaviour can help maintain more consistent level across front and rear rows.
WISDOM AUDIO · LINE SOURCE · IN-WALL
Insight L8i
A 48-inch planar-magnetic line-source in-wall speaker designed to reduce floor/ceiling interaction and maintain level more consistently over distance.
LINE SOURCE REFERENCE
RoleLCR / surround
ArchitecturePlanar-magnetic line source
Response80 Hz–20 kHz
Max SPL115 dB continuous / 118 dB peak
PRODUCT GALLERY
See the product from more than one perspective.

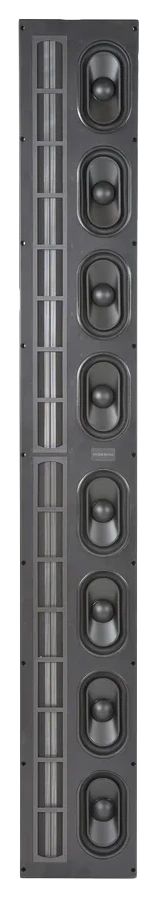

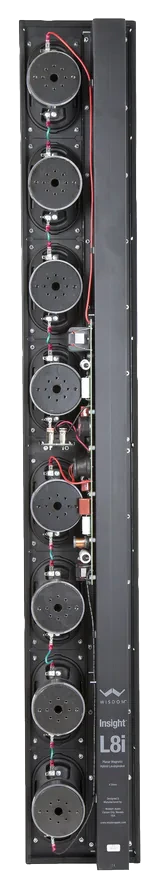

Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
The room hears less of the floor and ceiling.
The L8i uses a 48-inch planar-magnetic line source above 550 Hz with eight proprietary woofers below. The geometry is intended to reduce vertical room interaction while maintaining broad horizontal coverage.
In a multi-row theatre, that can be a more important advantage than simply adding more output.
SYSTEM ROLE
Where it fits in a cinema.
Architectural integration
The in-wall format keeps the speaker out of the room while preserving a tall radiating aperture.
Room control
Reduced floor/ceiling energy can improve clarity in acoustically challenging rooms.
ROOM DESIGN
Choose the room conditions before choosing the quantity.
Wall depthThe in-wall cavity and air volume must match the installation requirements.
Listening heightThe line height should be considered against eye/ear height across rows.
Bass integrationThe L8i belongs in a deliberately crossed-over cinema system with the low-frequency system designed separately.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response80 Hz–20 kHz
Sensitivity91 dB / 2.83 V / 1 m
Horizontal dispersion80°
Crossover550 Hz
Dimensions131 × 21.2 × 9.6 cm
Manufacturer specifications should be confirmed against the current data sheet before final project specification.
RELATED Wisdom Audio PRODUCTS
Insight SeriesInsight P6iA tall planar-magnetic point-source in-wall loudspeaker with controlled 60° × 30° coverage and high output for screen and surround roles.Wisdom SeriesWisdom Series LS4An extreme 80-inch planar-magnetic line source capable of cinema-scale output while dramatically reducing vertical room interaction.Insight SeriesInsight iCI6An architectural in-ceiling option that extends the Wisdom system into the height layer without defaulting to a generic ceiling speaker.
CONTINUE THE DESIGN PROCESS
Understand the room around the product.
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the manufacturer installation manual or current data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify Insight L8i in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
