Screen channels
The 60° × 30° coverage can be useful where the front array needs tighter control.
WISDOM AUDIO · POINT SOURCE · IN-WALL

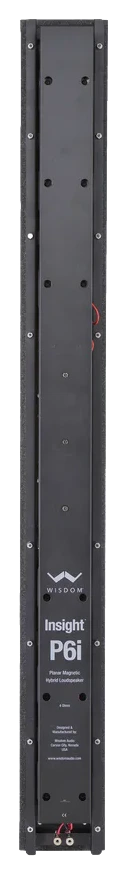

Insight P6i
A tall planar-magnetic point-source in-wall loudspeaker with controlled 60° × 30° coverage and high output for screen and surround roles.
PLANAR MAGNETIC POINT SOURCE
RoleLCR / surround
ArchitecturePlanar-magnetic point source
Response80 Hz–20 kHz
Max SPL116 dB @ 1 m
PRODUCT GALLERY
See the product from more than one perspective.
Official manufacturer imagery showing the enclosure, installation form or design detail.
WHY IT EXISTS
Planar magnetic does not automatically mean line source.
The P6i uses an MTM planar-magnetic array with six woofers, giving Wisdom a controlled point-source option for rooms where a line source is not the right radiation pattern.
That makes it useful for mixed systems where directivity and mounting geometry differ by channel role.
SYSTEM ROLE
Where it fits in a cinema.
Surround roles
A high-output architectural format for walls where a smaller point source would run out of headroom.
Mixed Wisdom systems
Can be paired with line-source models where the room benefits from different radiation patterns by channel.
ROOM DESIGN
Choose the room conditions before choosing the quantity.
Coverage aimingUse the nominal coverage as the start of the seating calculation, not the end.
Wall cavityMinimum and recommended air volume affect performance.
AmplificationAllow adequate headroom rather than sizing amplifiers only to average listening levels.
PUBLISHED SPECIFICATION
Useful numbers, in context.
Frequency response80 Hz–20 kHz
Sensitivity90 dB / 2.83 V / 1 m
Dispersion60° × 30°
Crossover600 Hz
Dimensions131 × 13.7 × 8.7 cm
Manufacturer specifications should be confirmed against the current data sheet before final project specification.
RELATED Wisdom Audio PRODUCTS
Insight SeriesInsight L8iA 48-inch planar-magnetic line-source in-wall speaker designed to reduce floor/ceiling interaction and maintain level more consistently over distance.Wisdom SeriesWisdom Series LS4An extreme 80-inch planar-magnetic line source capable of cinema-scale output while dramatically reducing vertical room interaction.Insight SeriesInsight iCI6An architectural in-ceiling option that extends the Wisdom system into the height layer without defaulting to a generic ceiling speaker.
MANUFACTURER REFERENCE
Confirm current product data before specification.
This page is a specialist design overview rather than a substitute for the manufacturer installation manual or current data sheet.
Official manufacturer information reviewed for this page.PROJECT-SPECIFIC ADVICE
Specify Insight P6i in the context of the room.
Send the room dimensions, seating plan, screen width, target layout and intended listening level.
